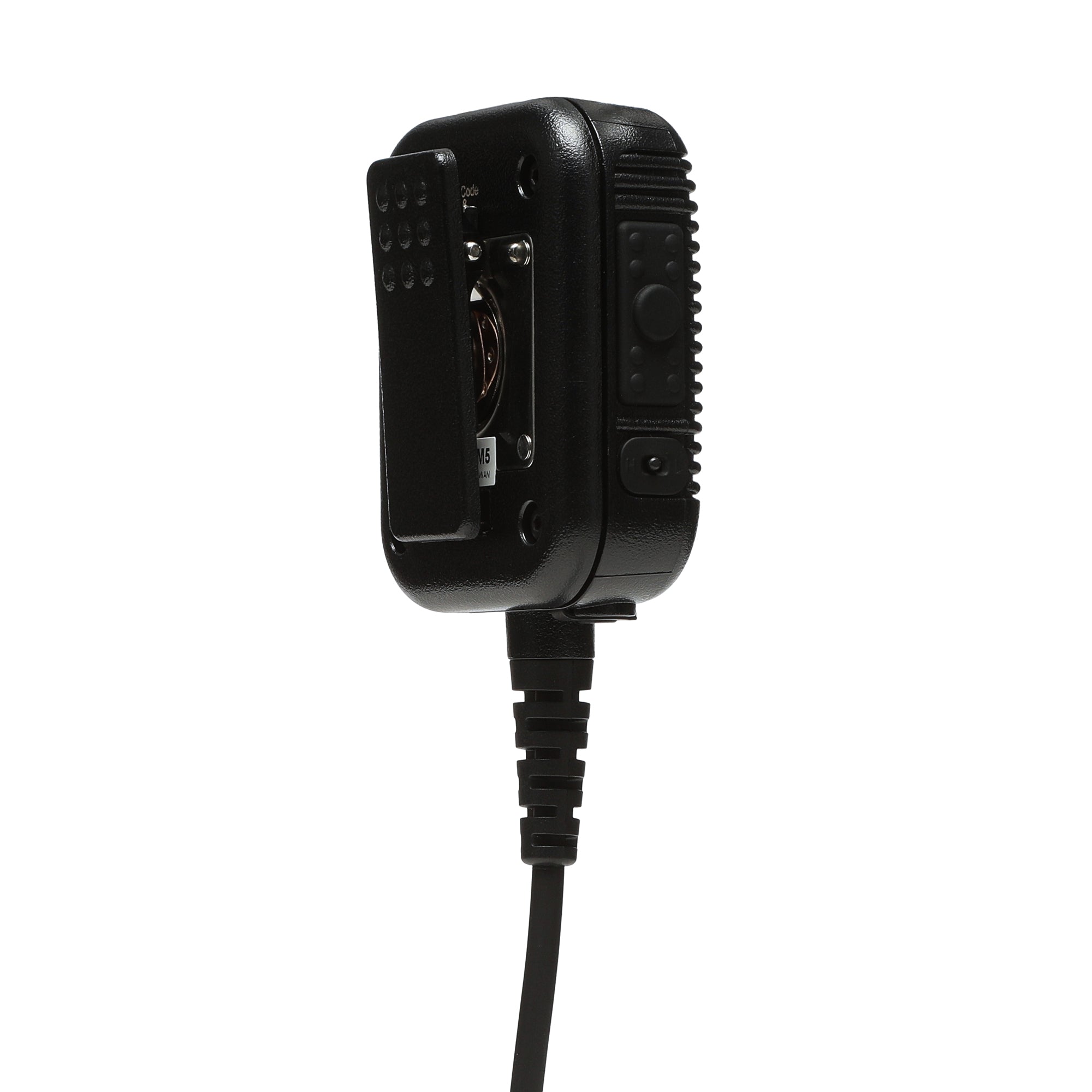

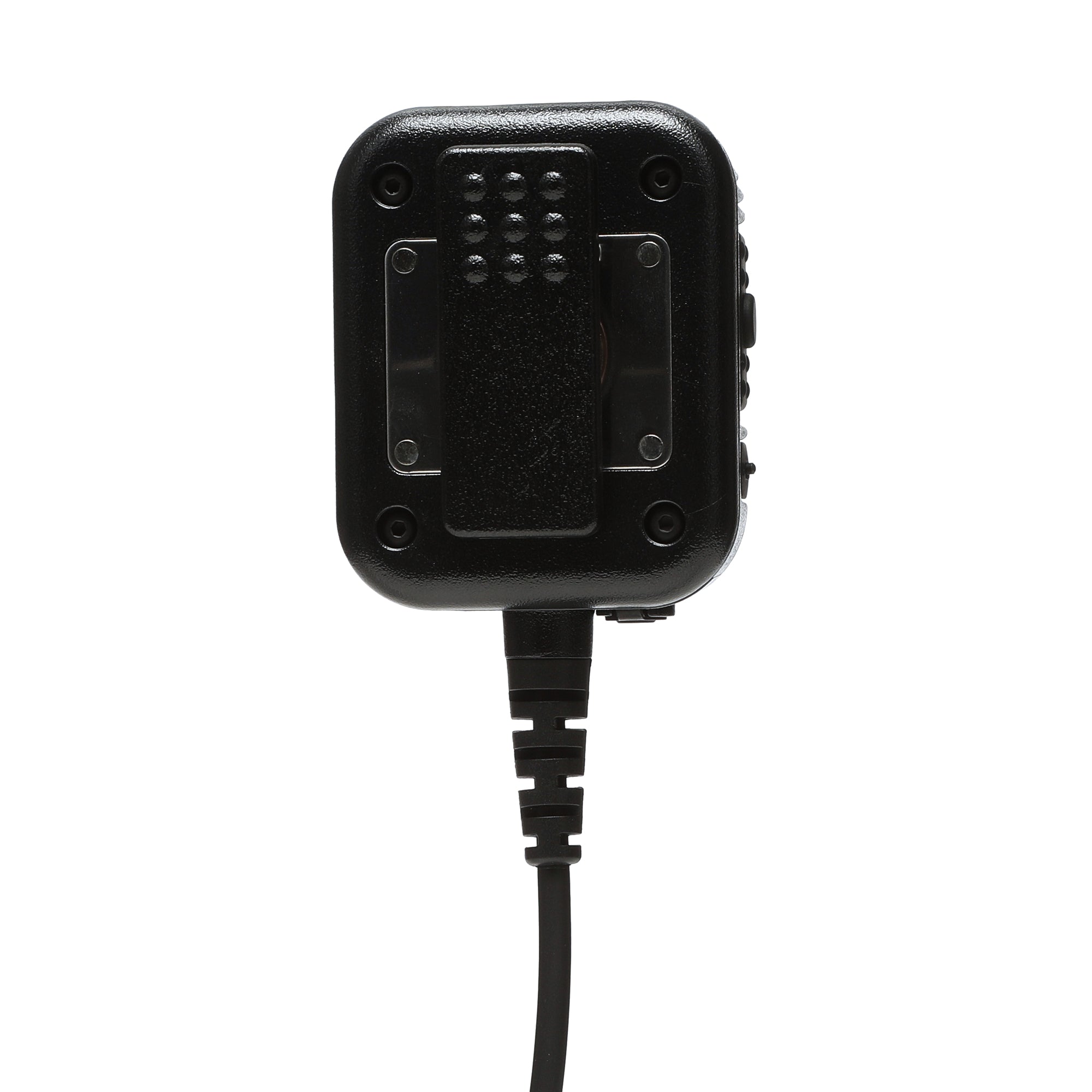

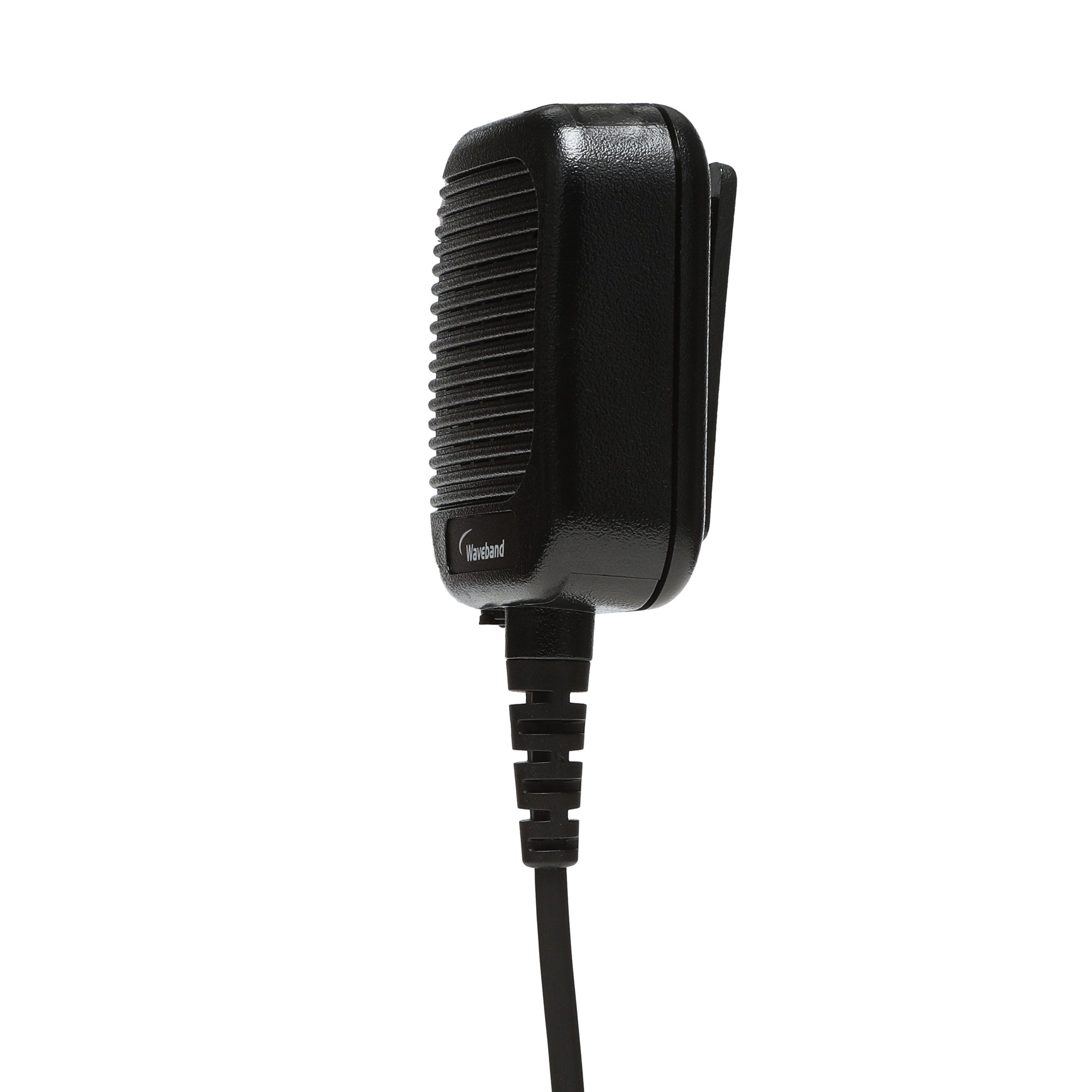

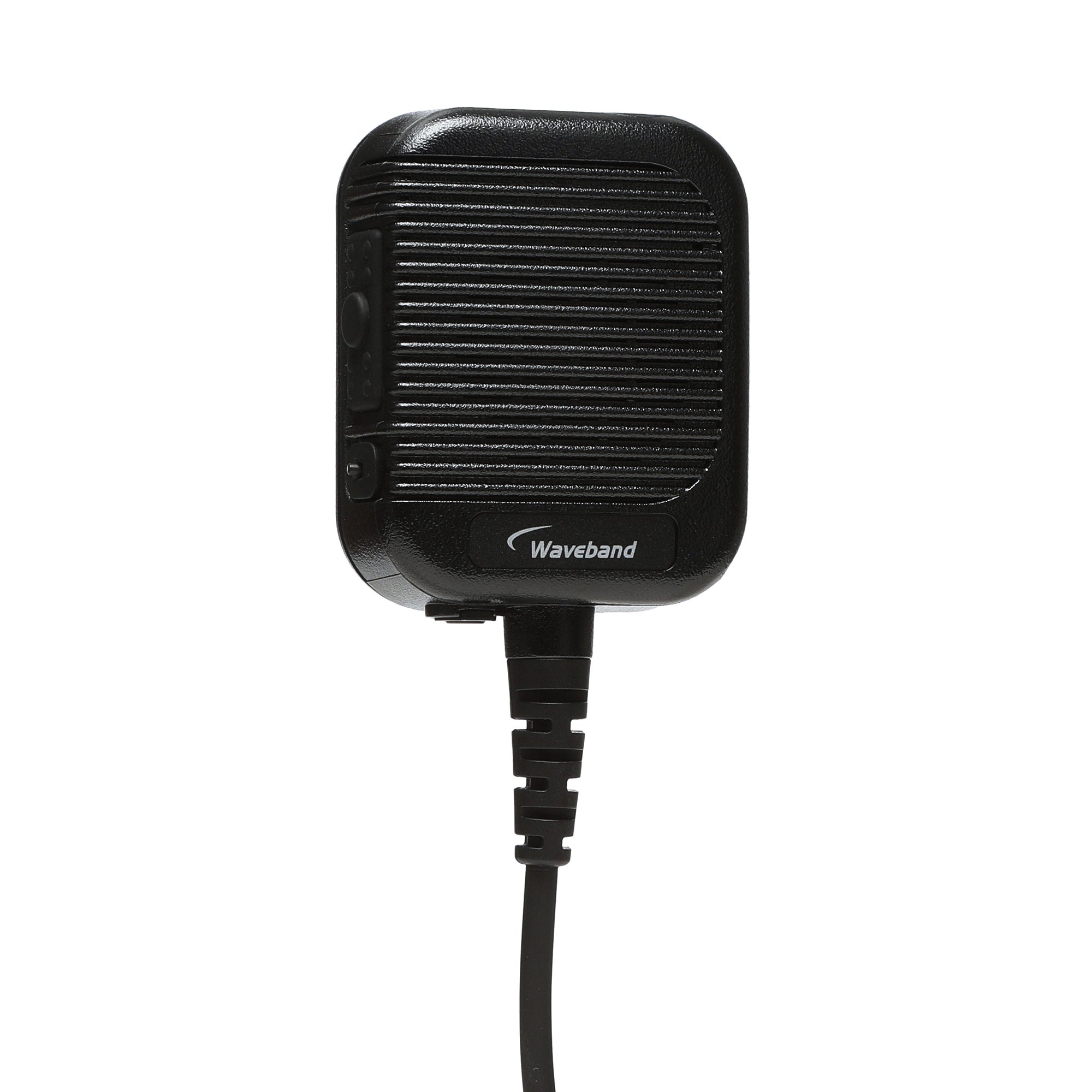

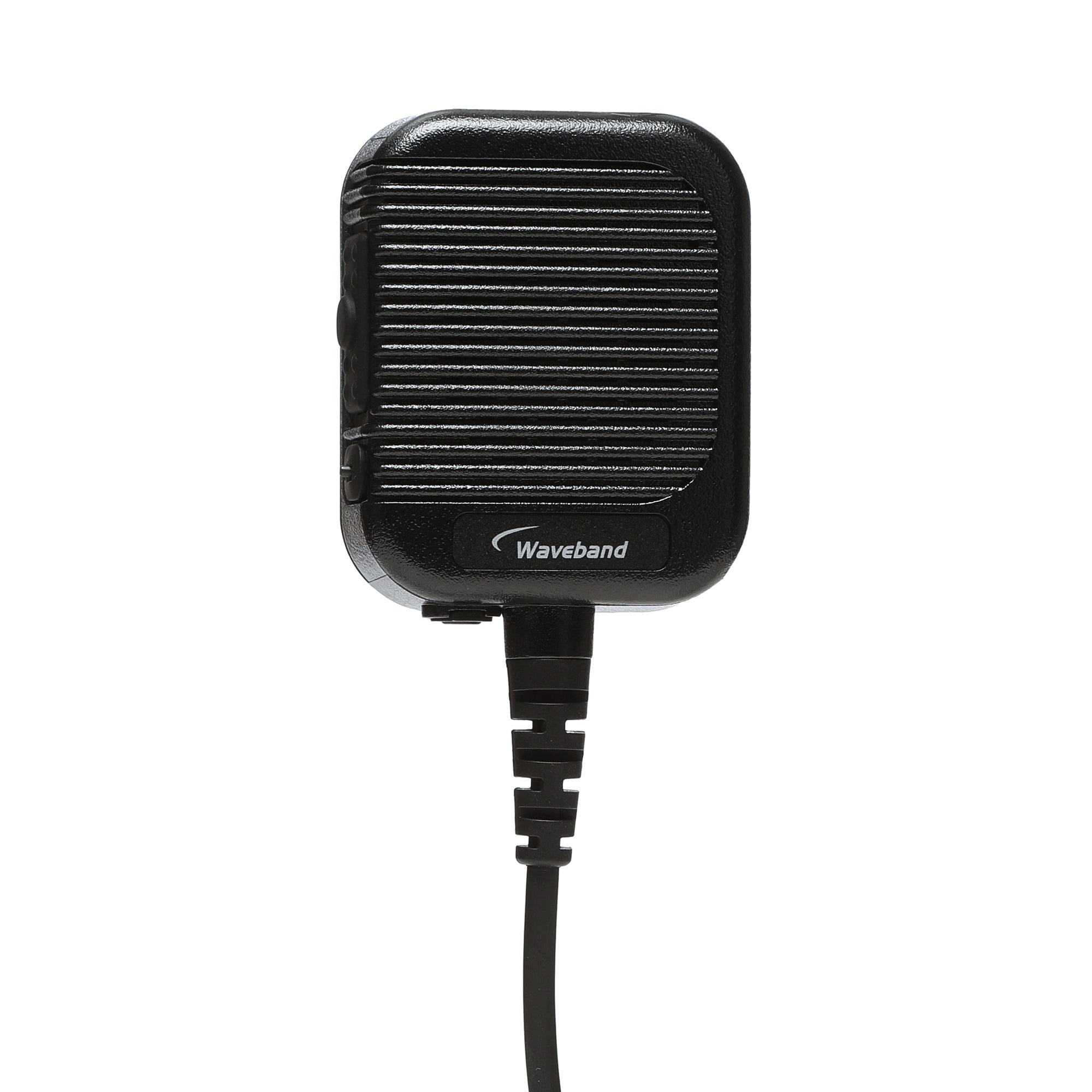

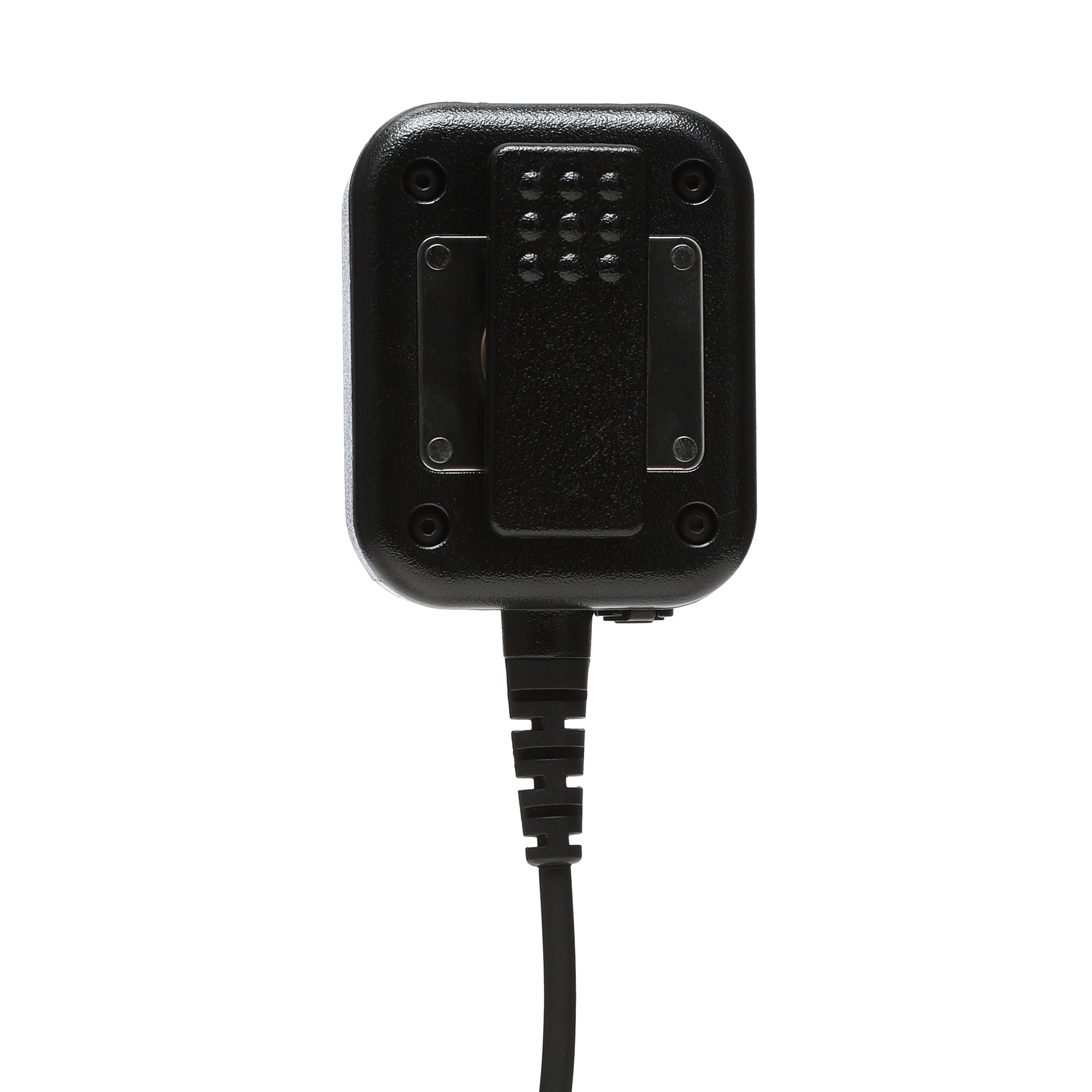

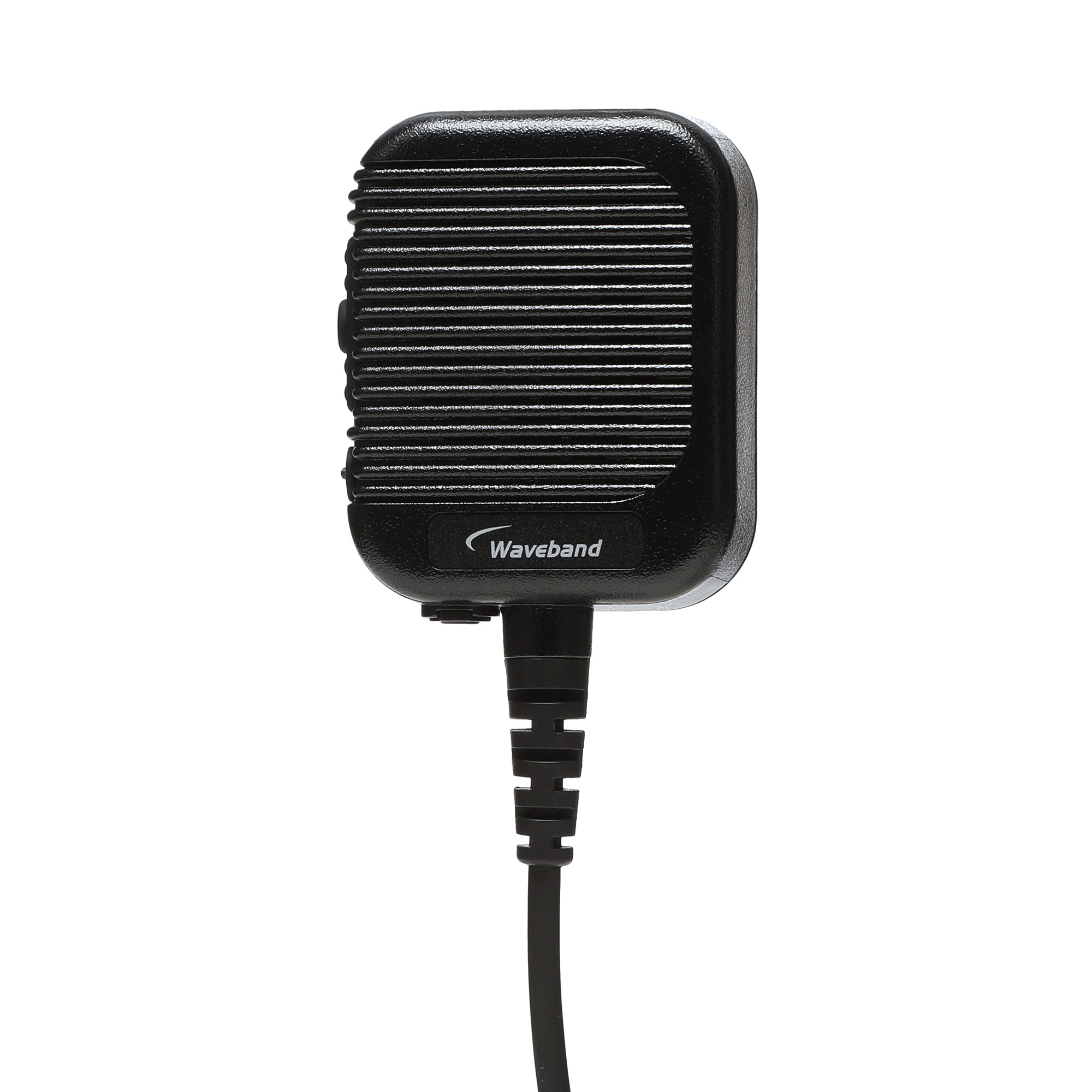

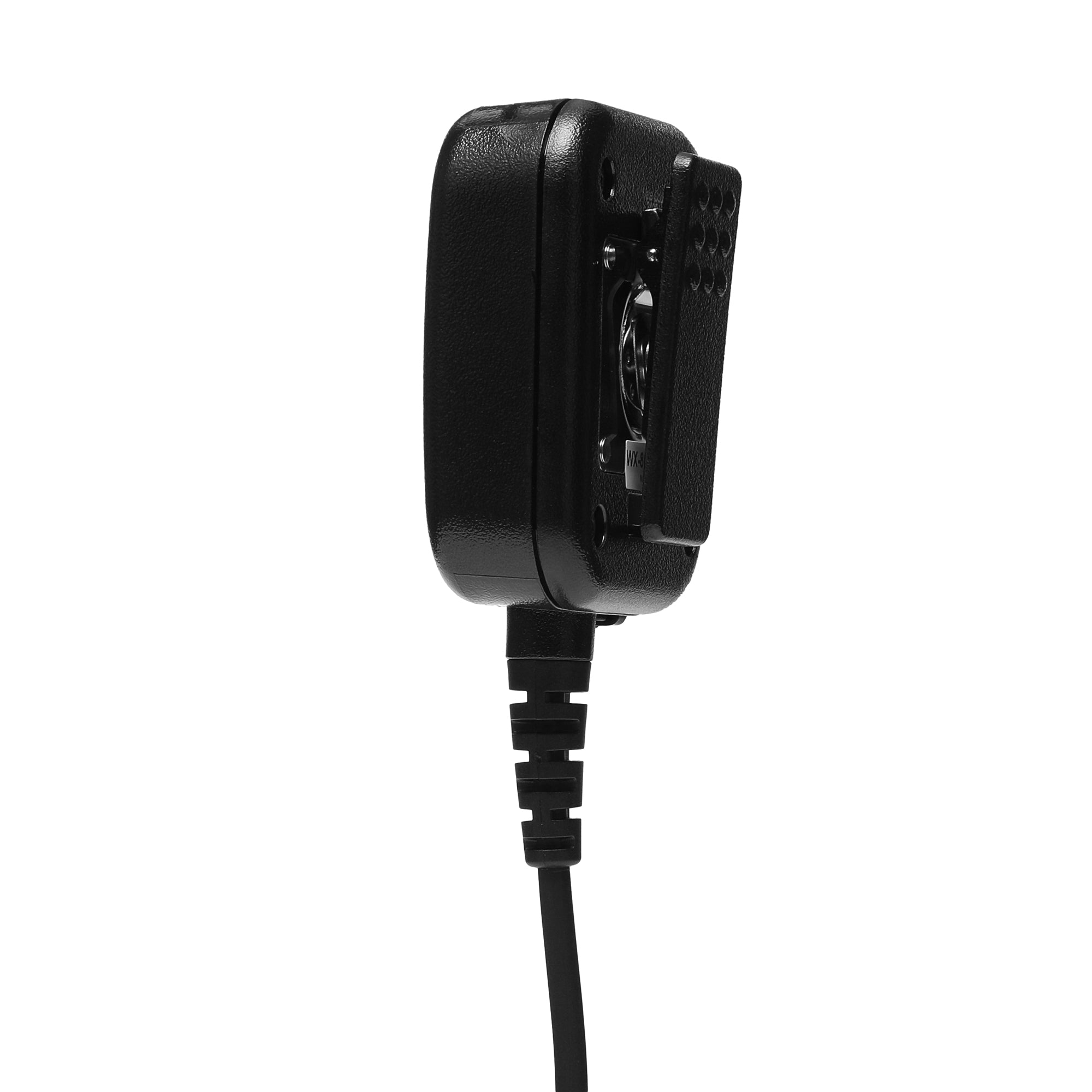

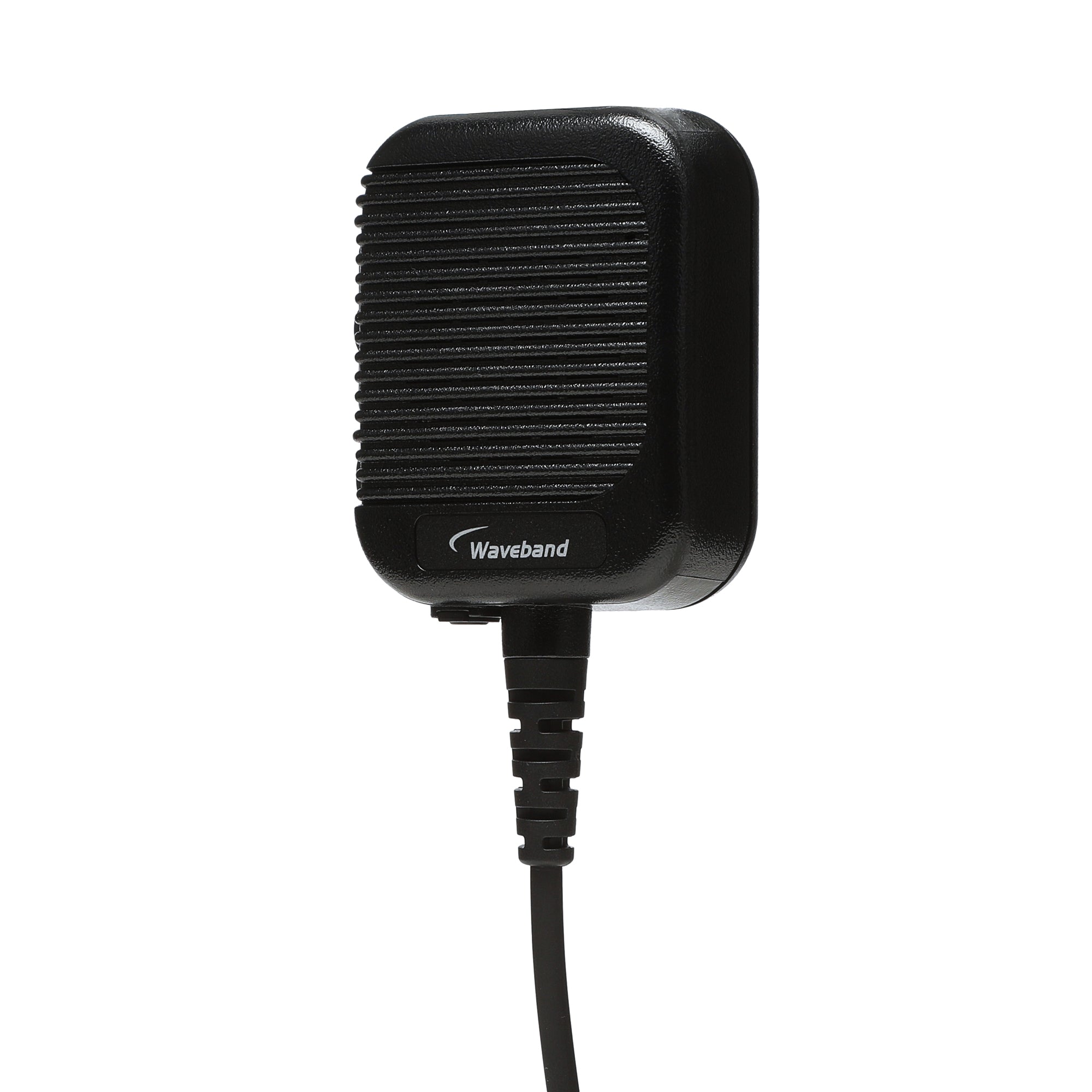

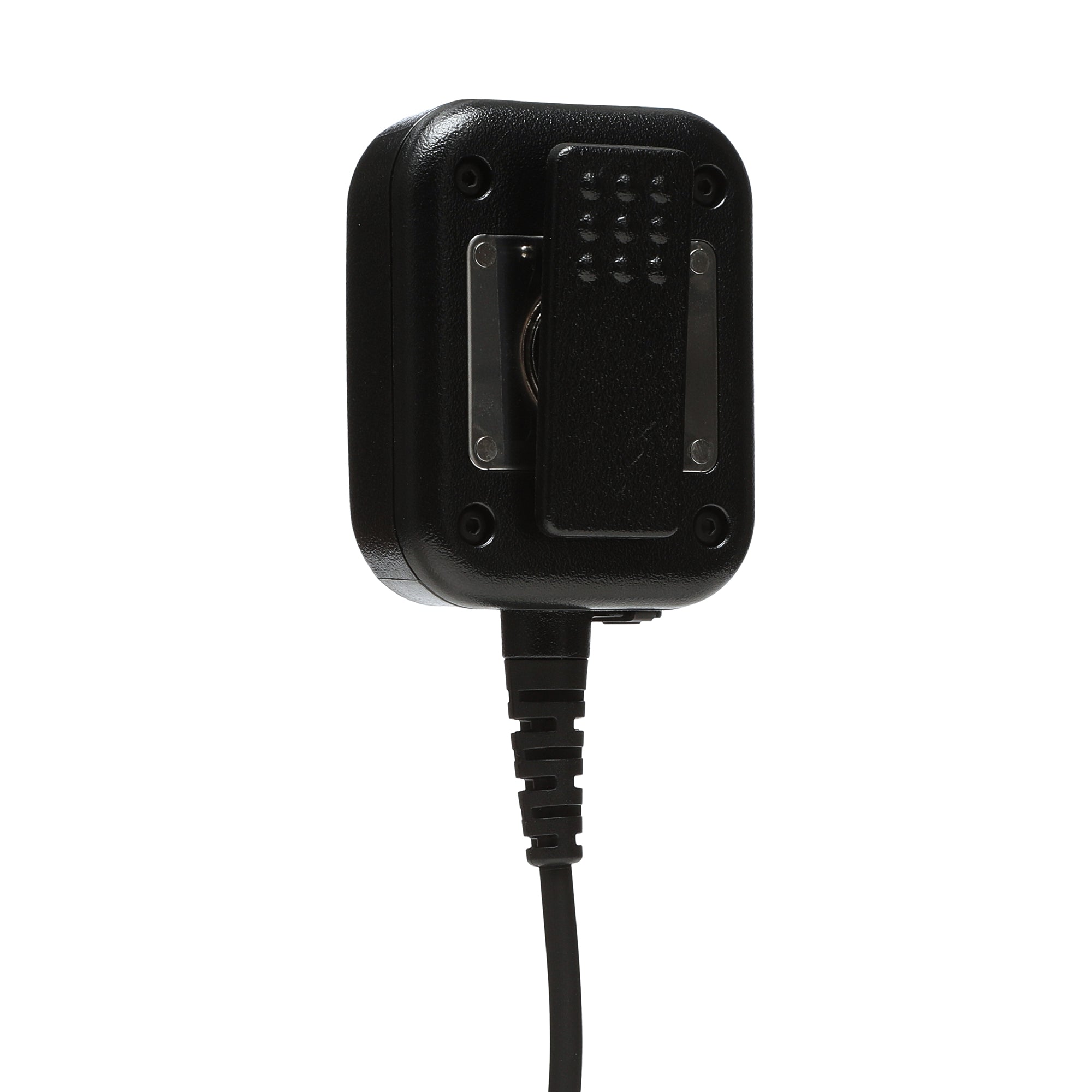

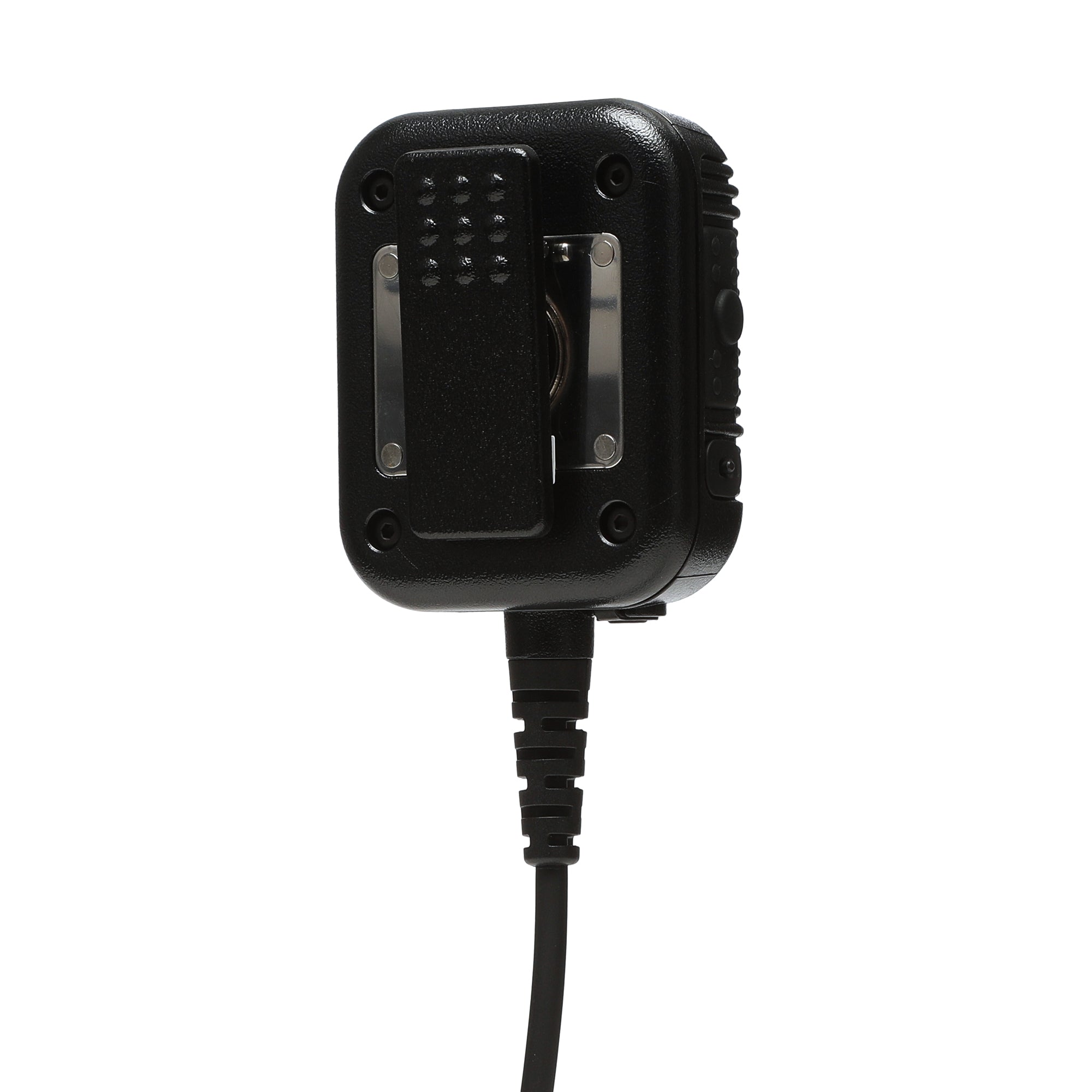

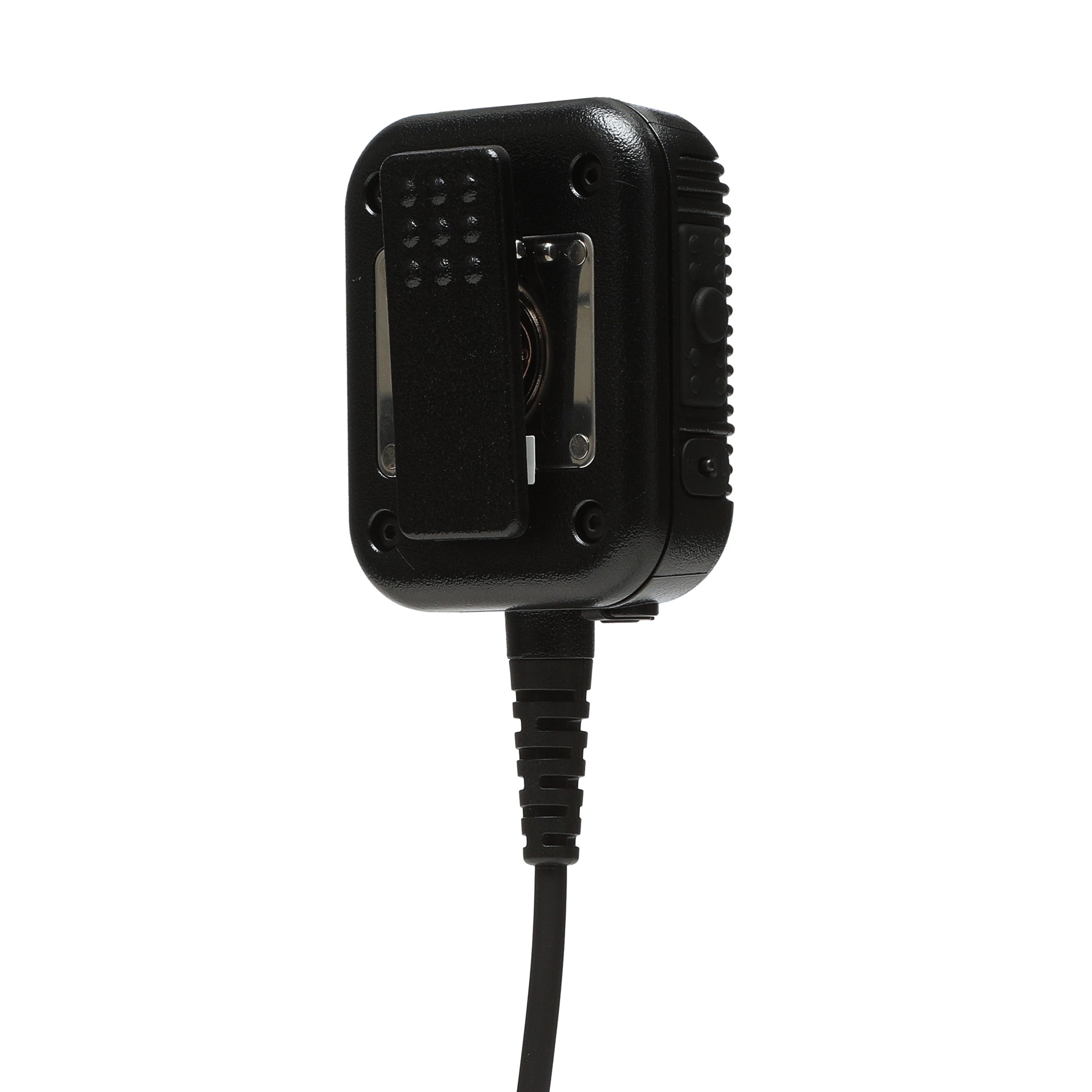

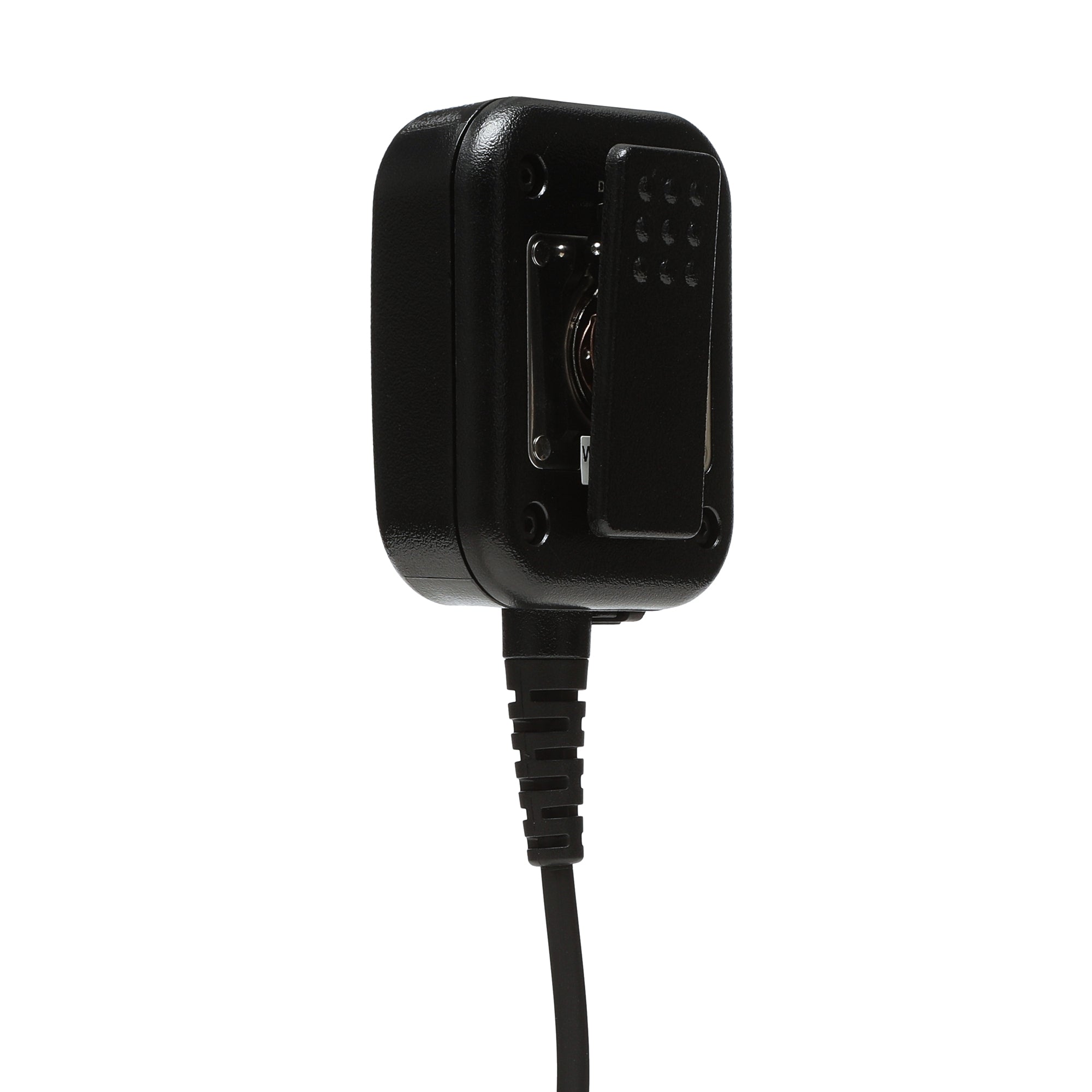

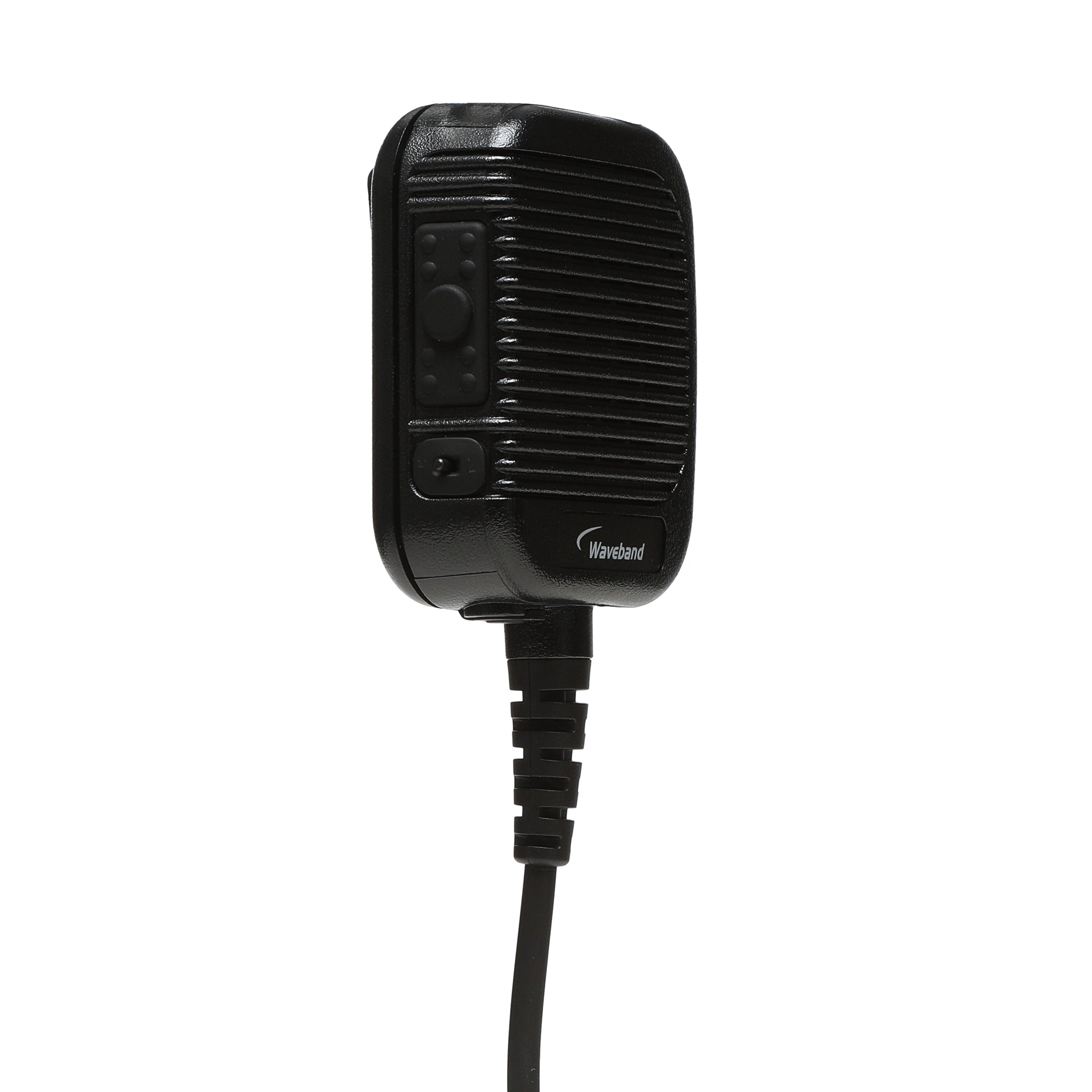

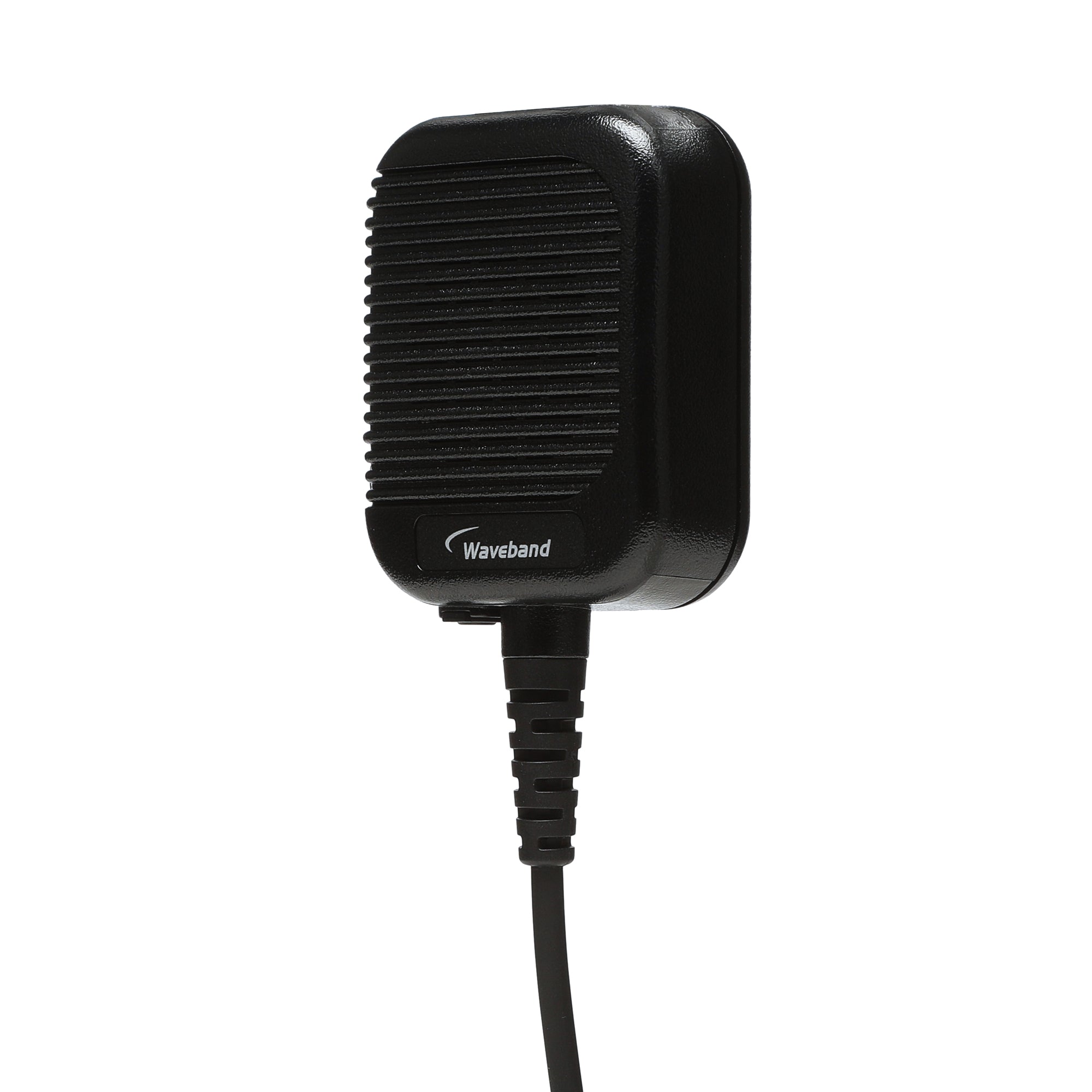

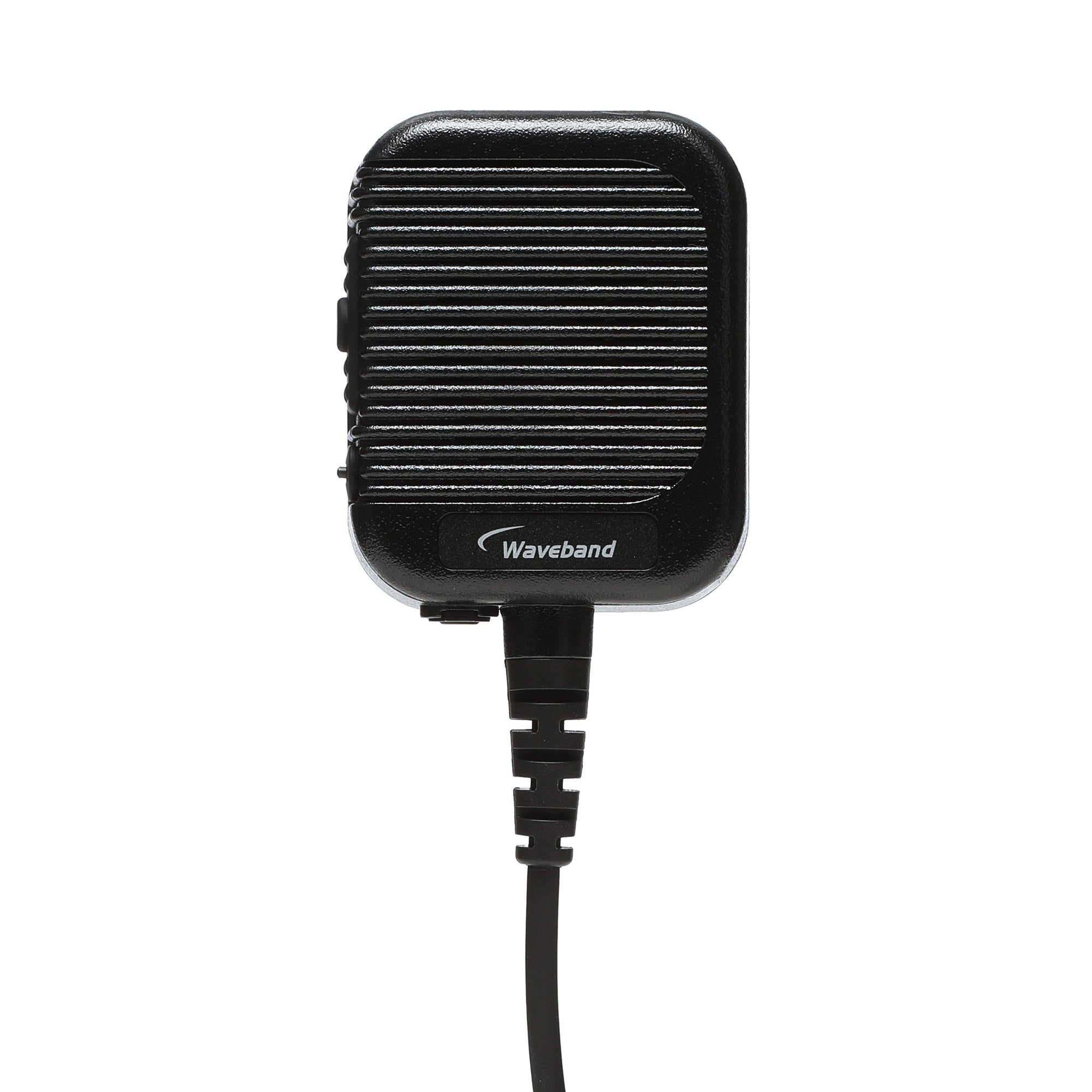

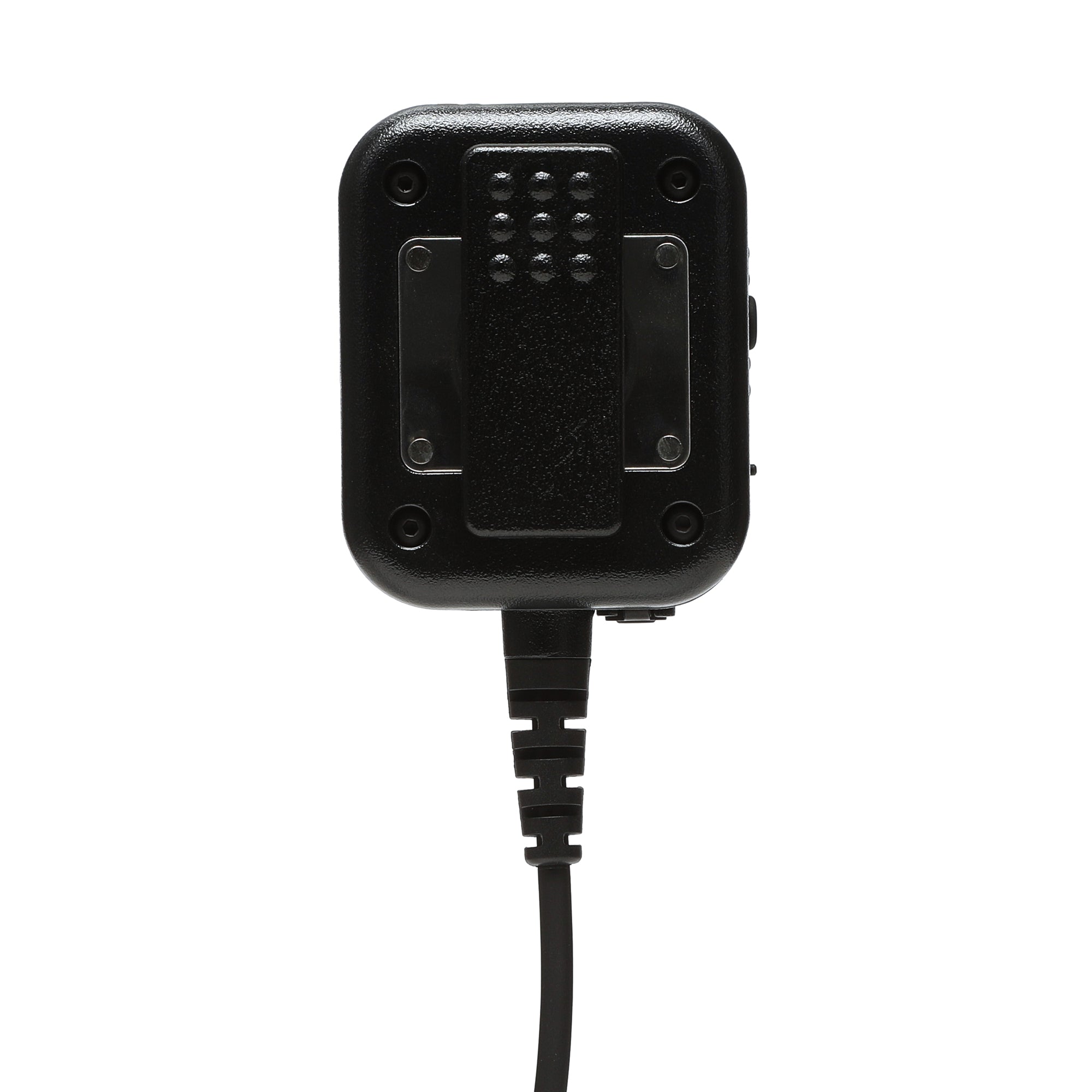

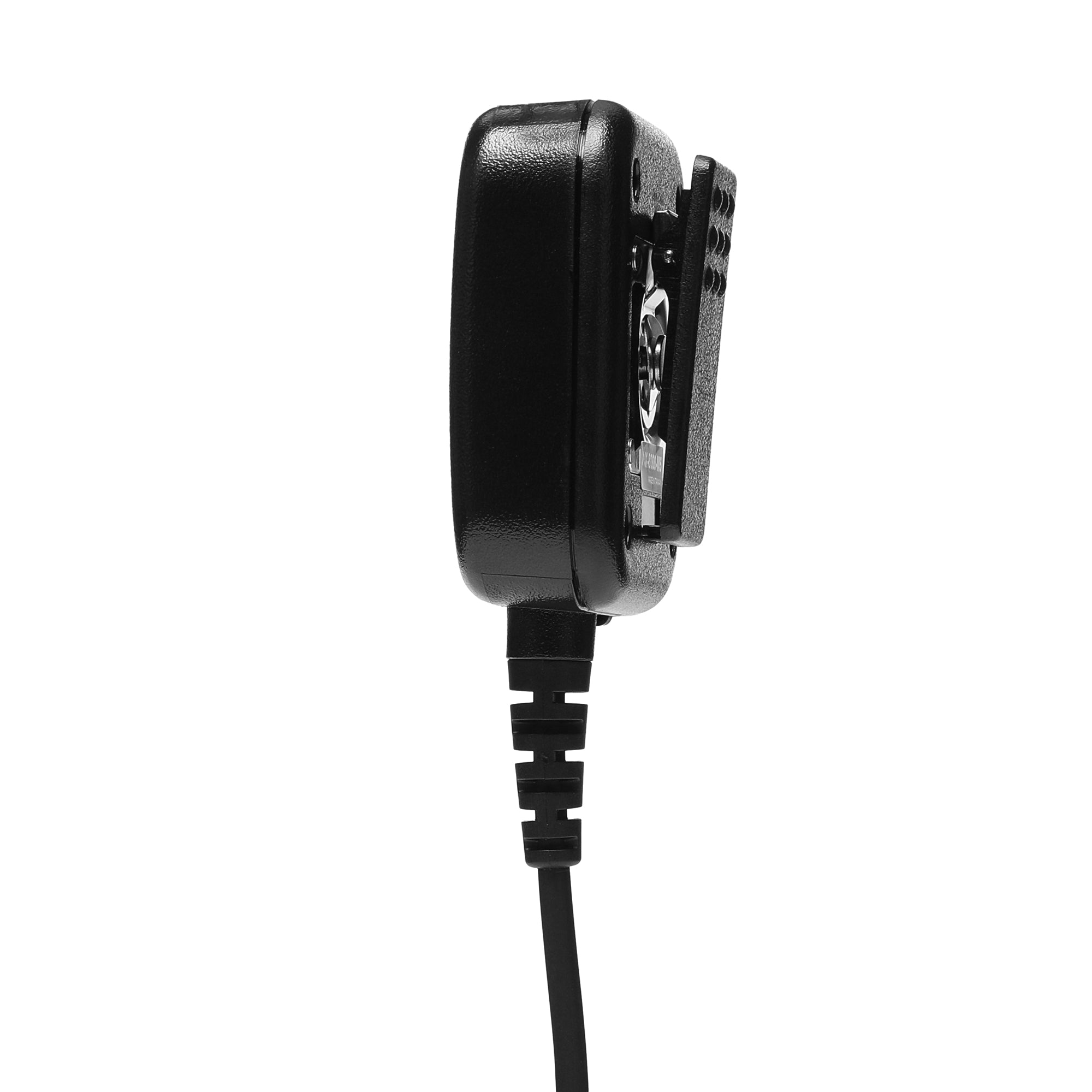

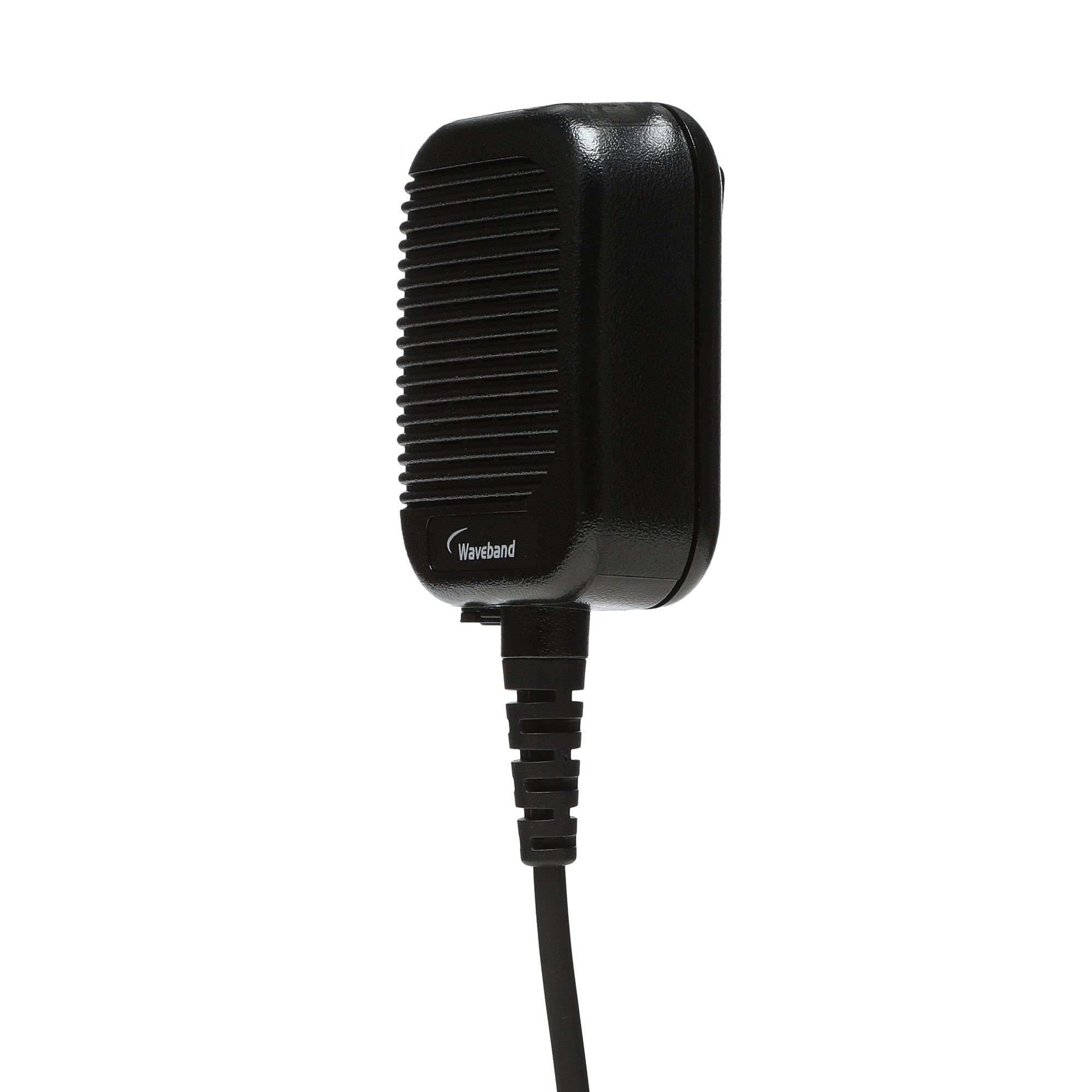

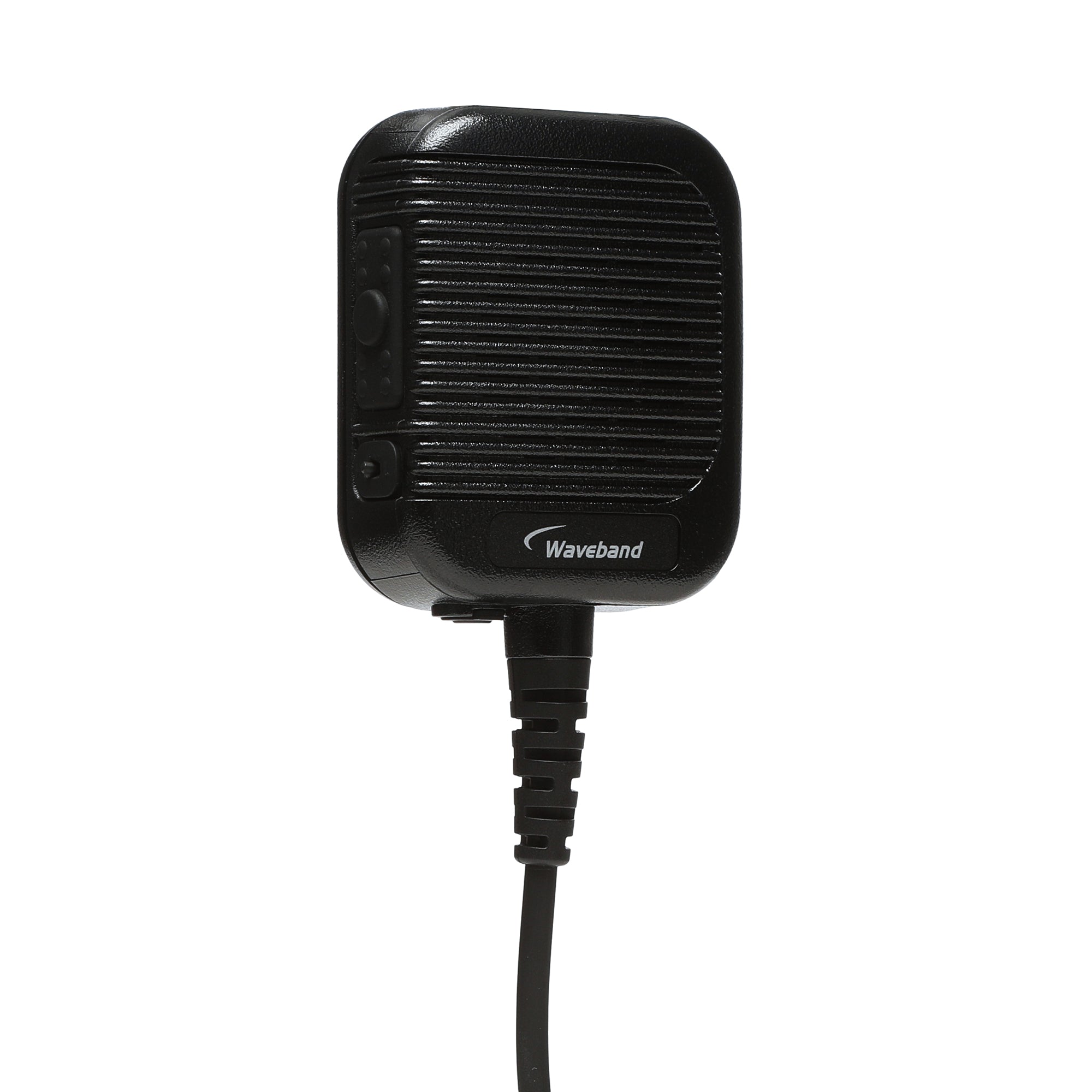

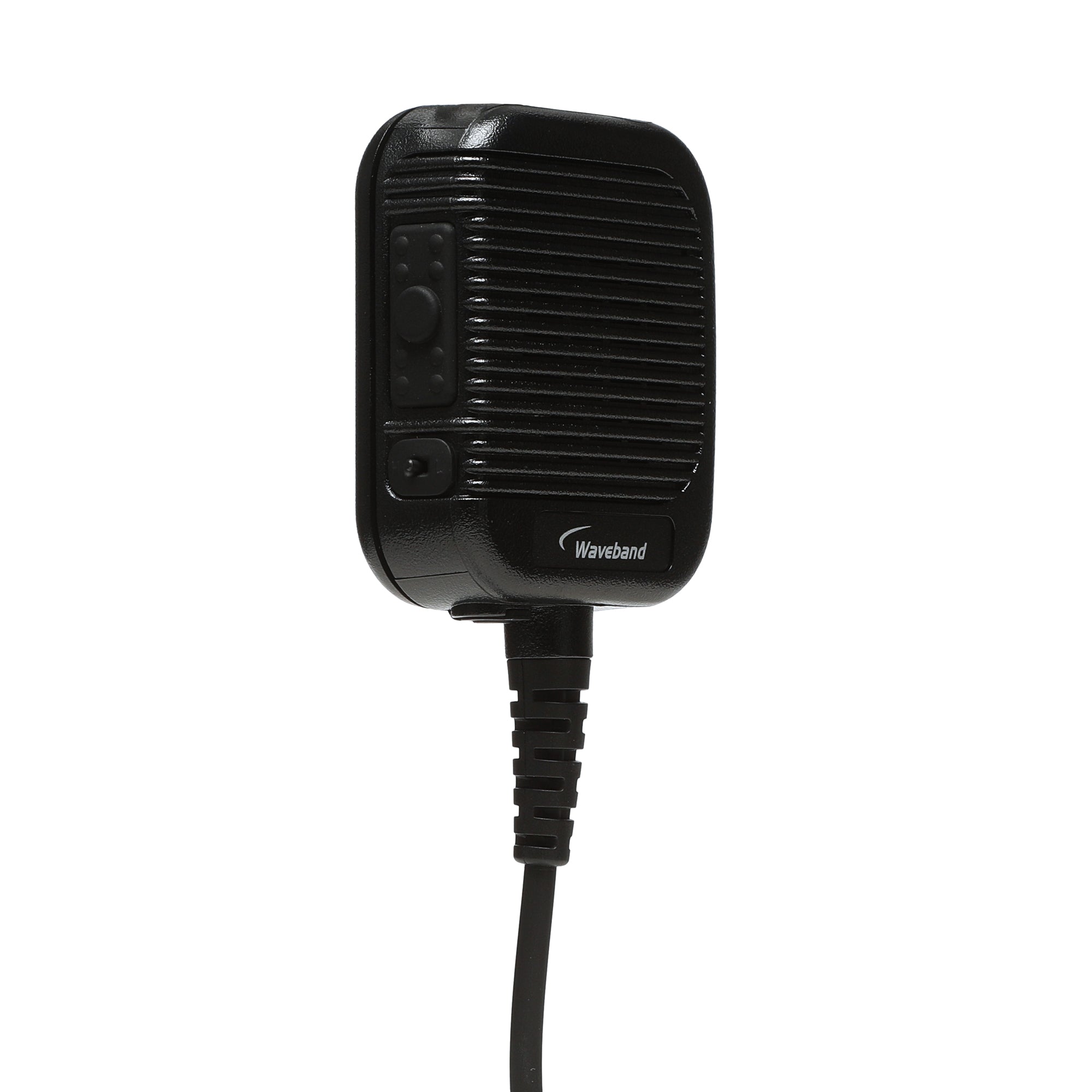

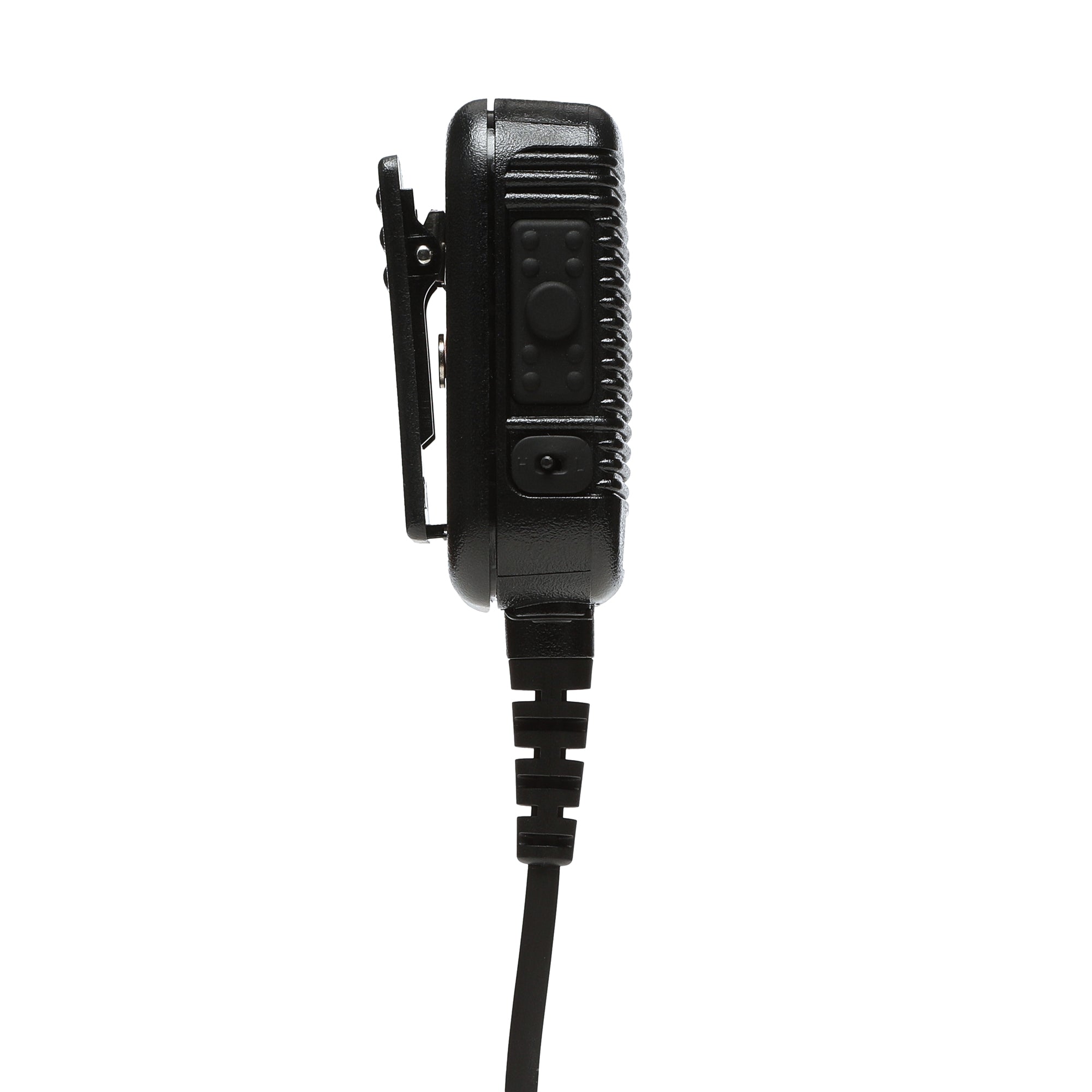

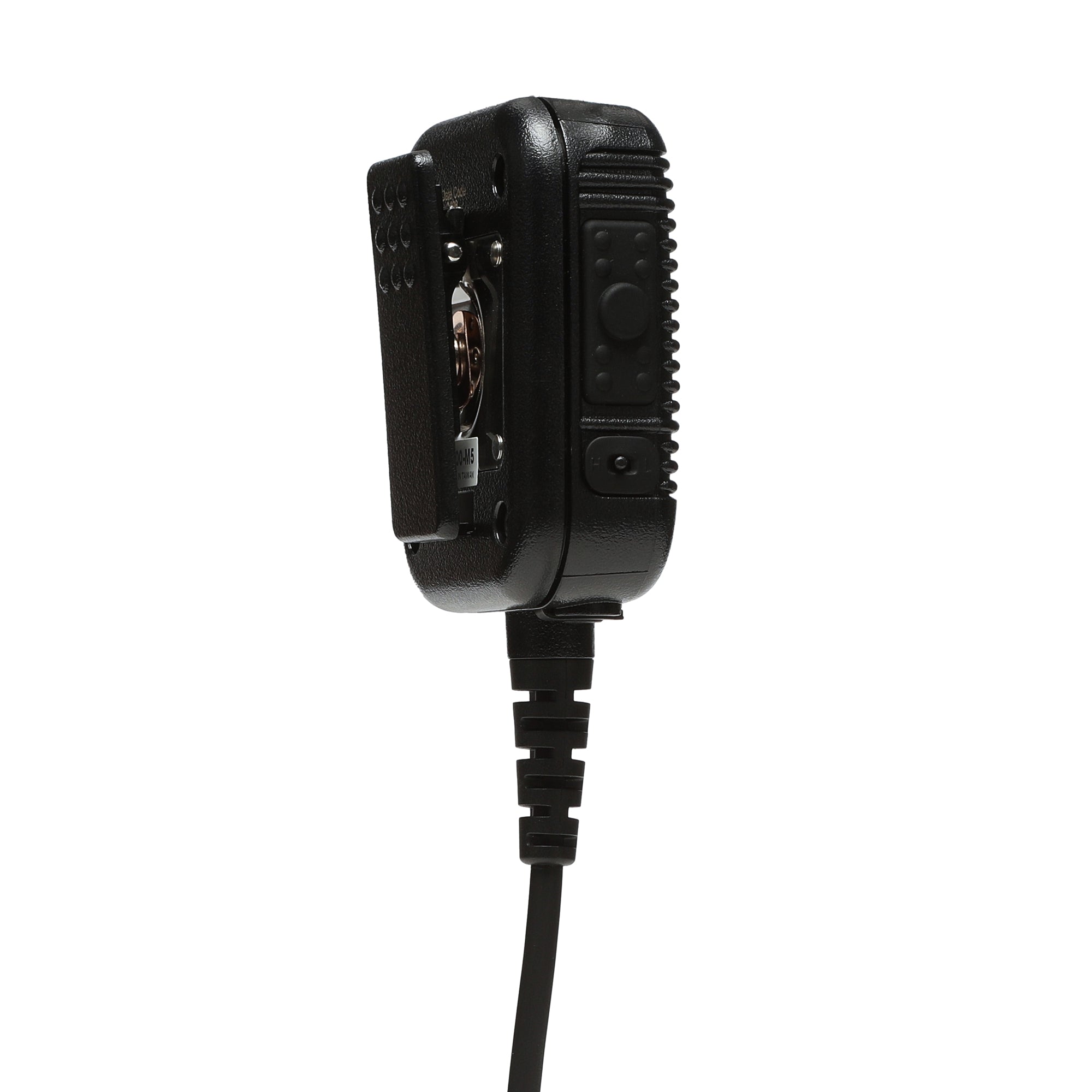

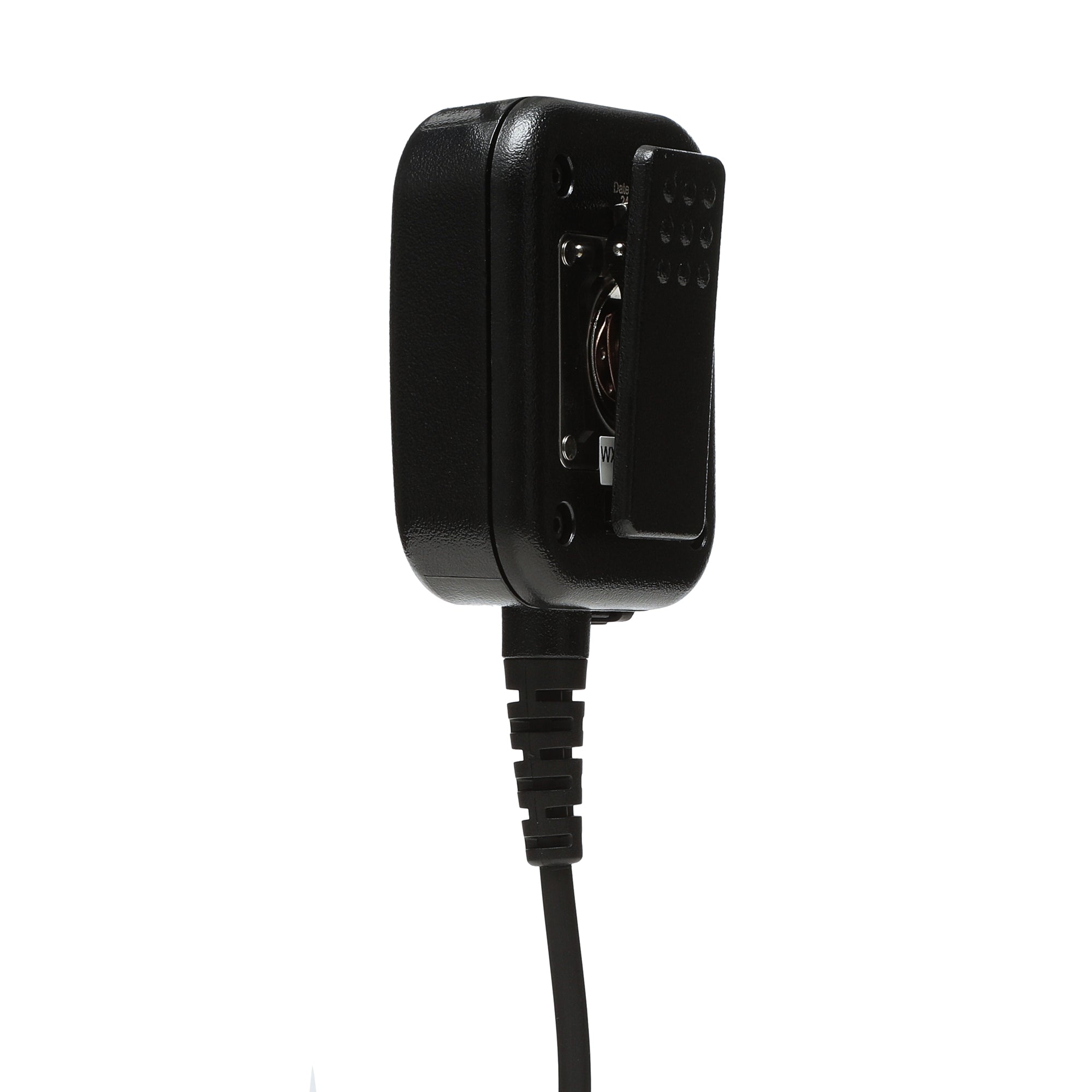

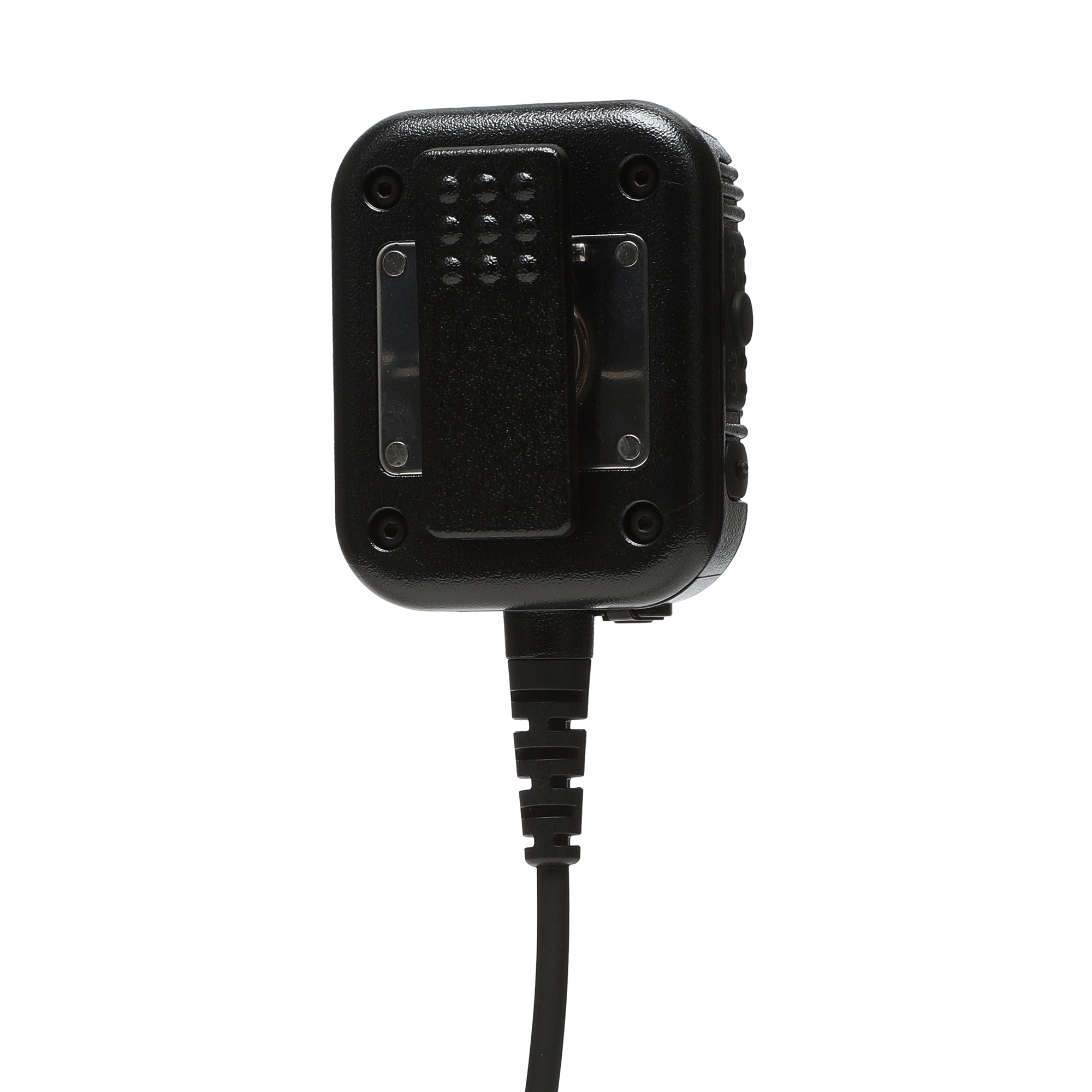

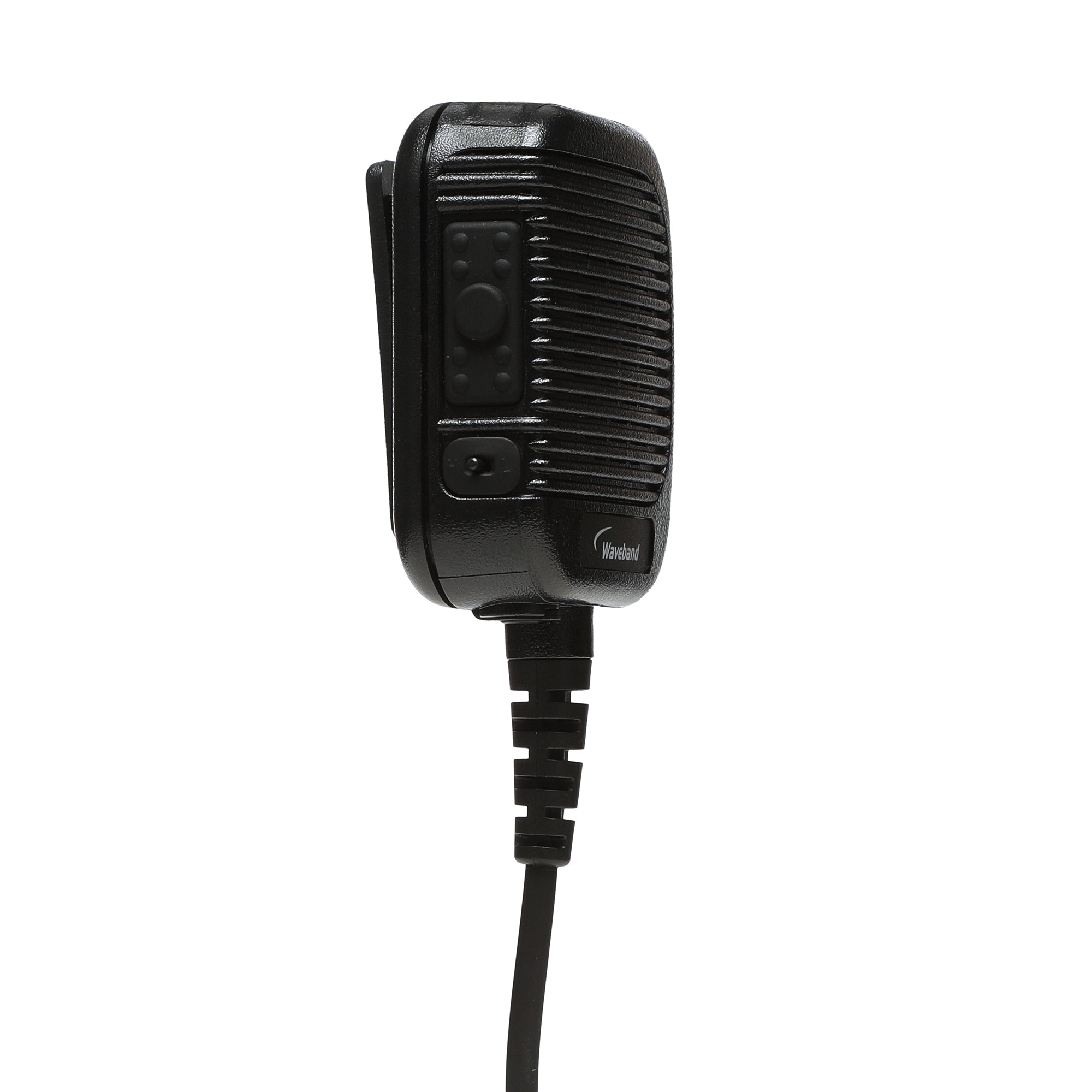

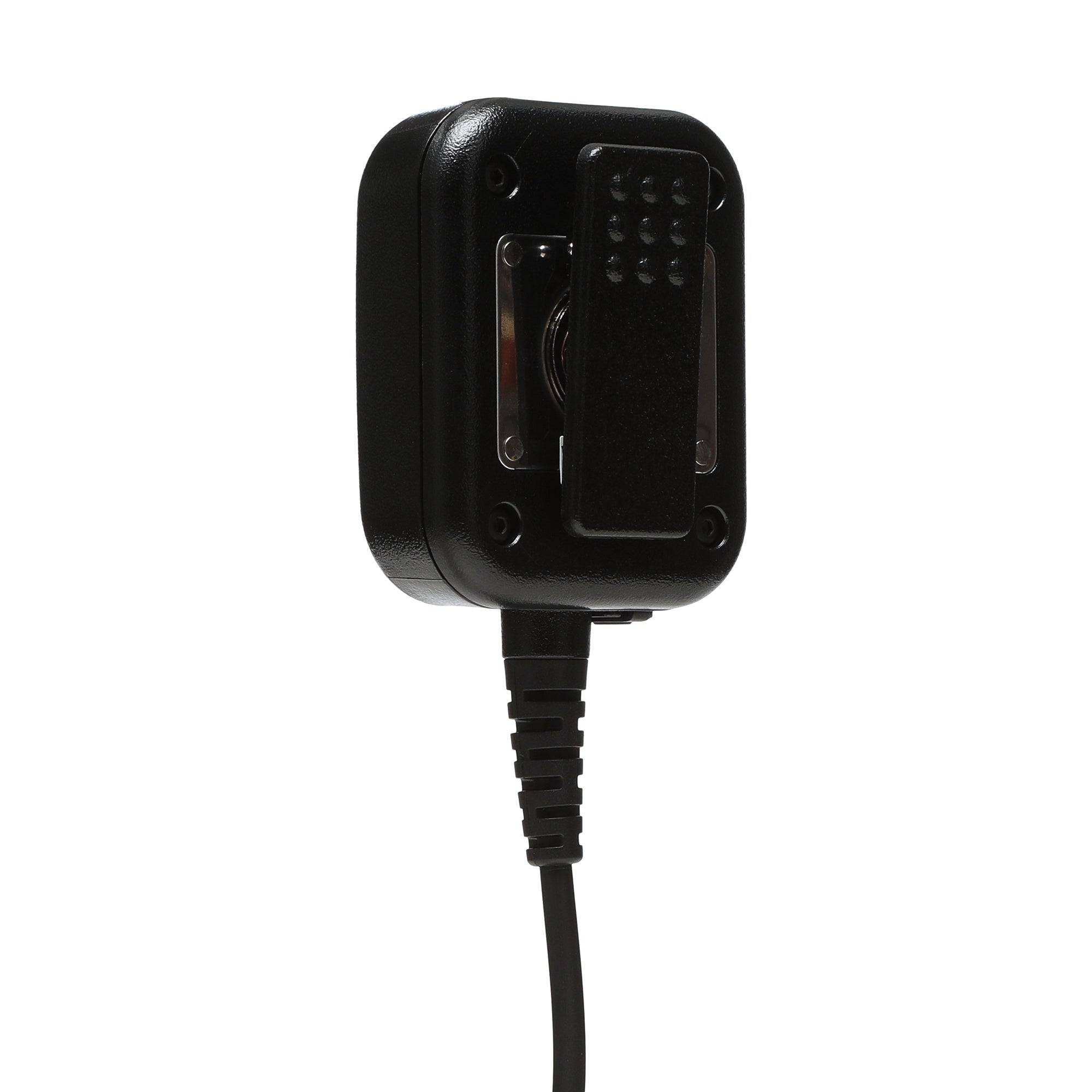

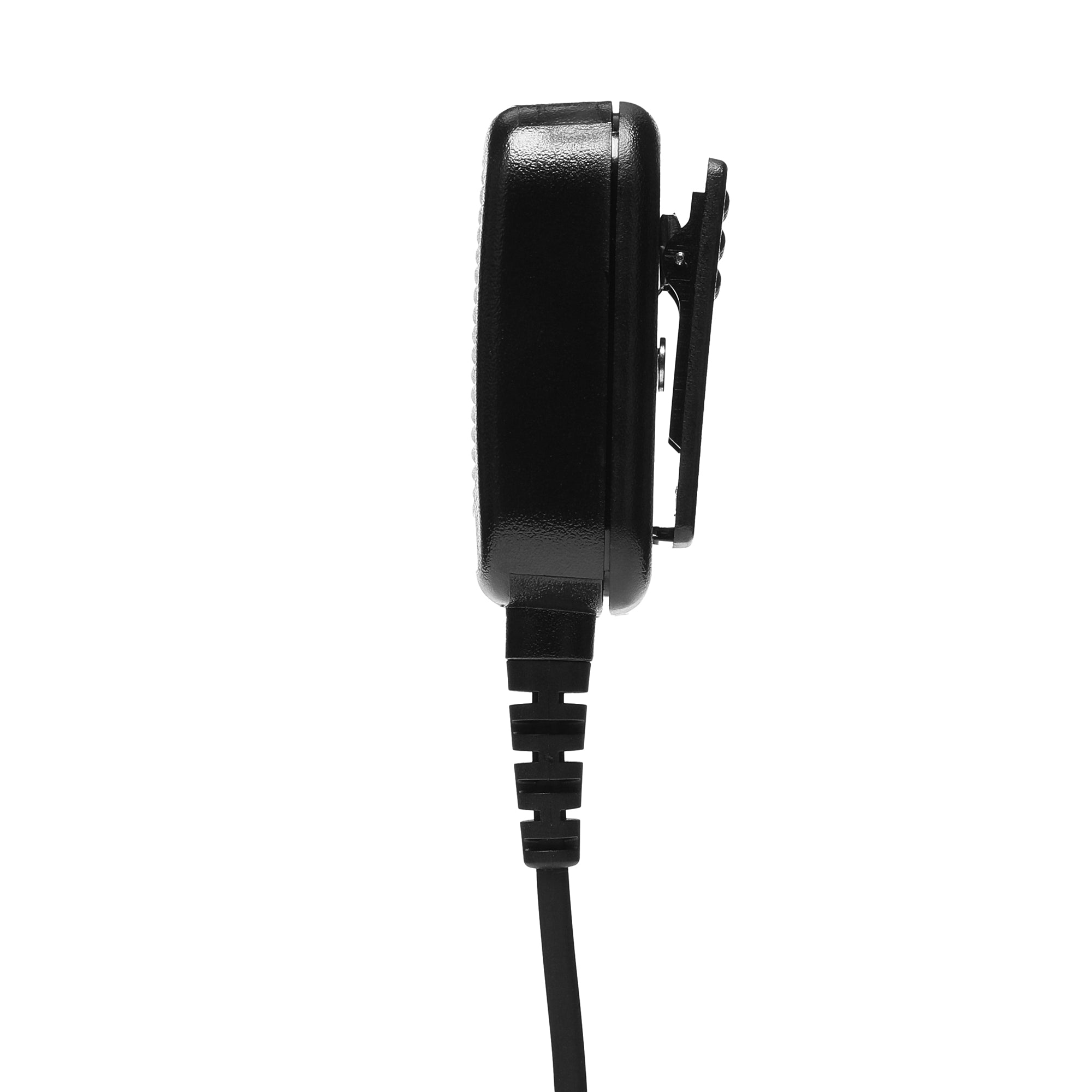

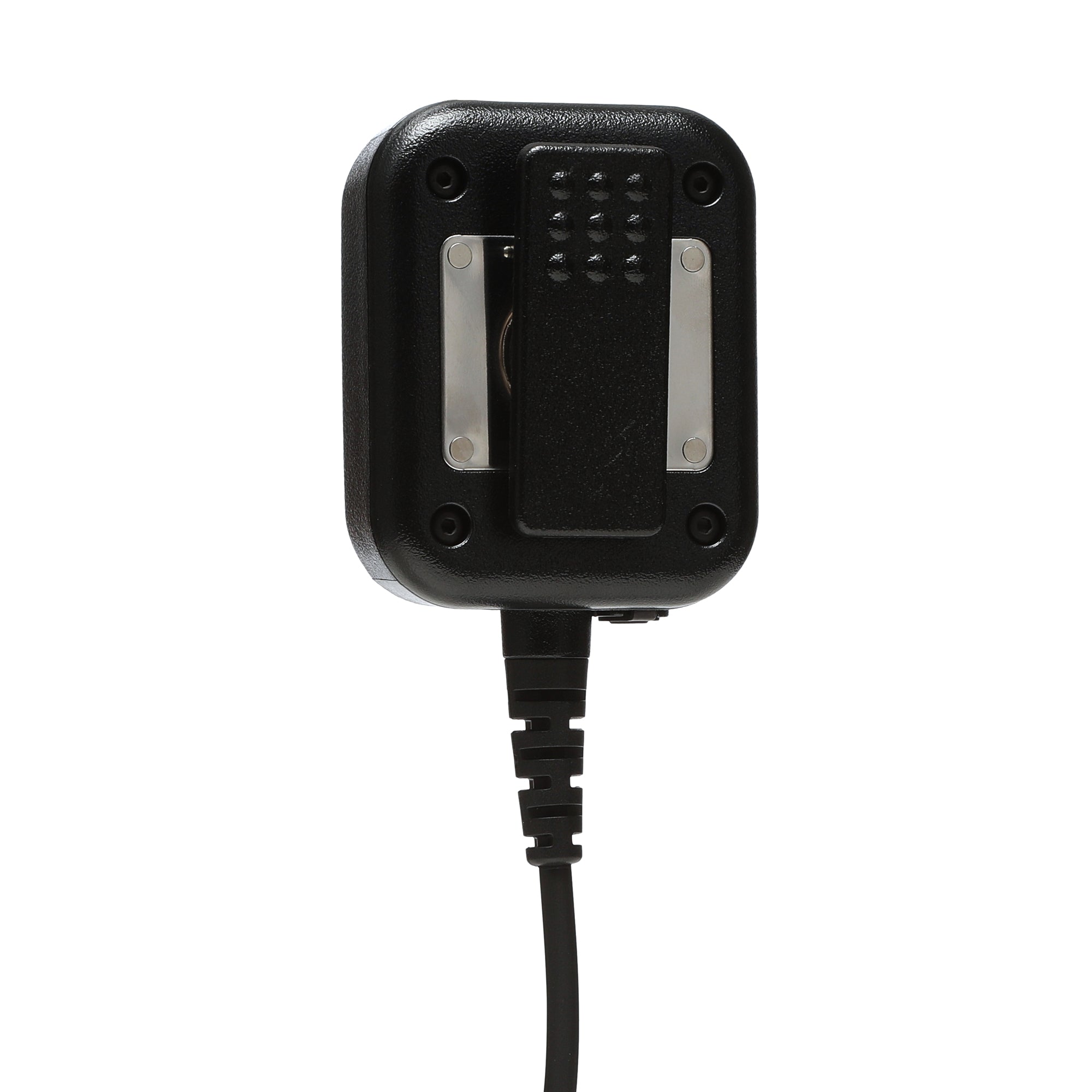

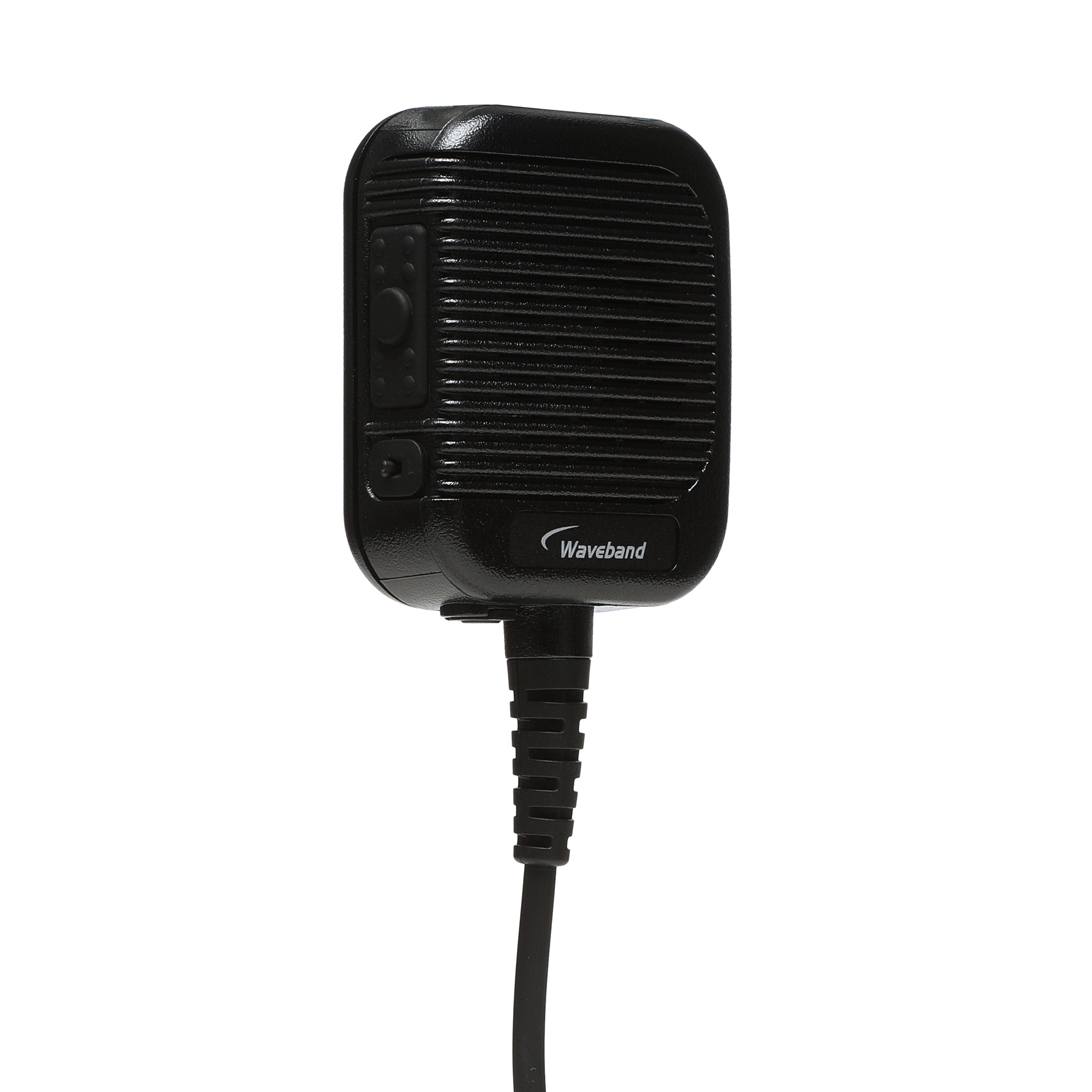

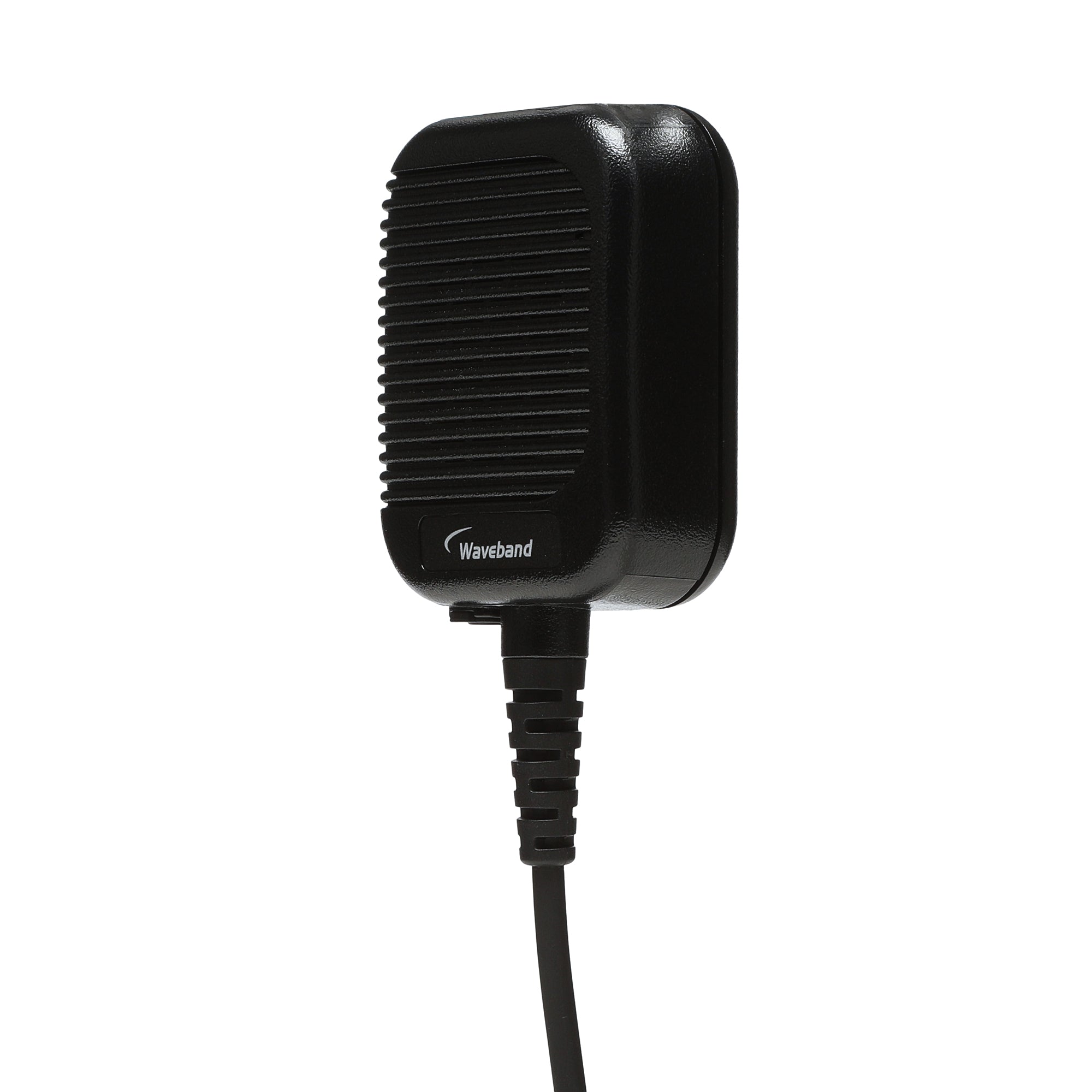

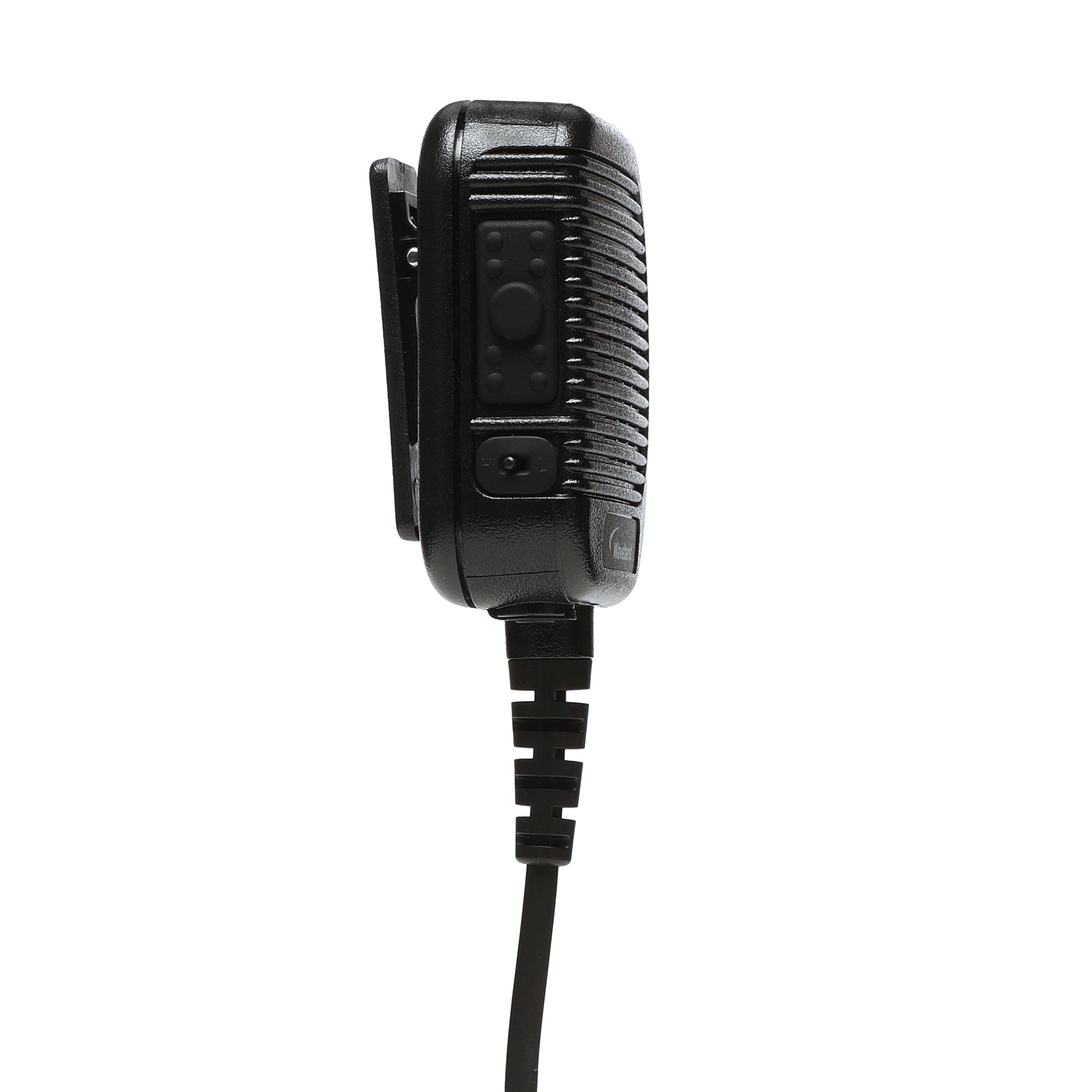

Submersible Remote Speaker Microphone for Motorola XTS Series

The Waveband WX-8000-M5 is a public safety-grade remote speaker microphone built for Motorola XTS radio users who operate in the field. Built to IP67 waterproof standards with a Kevlar-reinforced cable and noise-cancelling microphone, it delivers clear, reliable audio for law enforcement, fire & EMS, military, and EF Johnson users.

A direct, high-value replacement for the Motorola RMN5038A.

Key Features

• Built to IP67 waterproof standards — fully submersible
• Noise-cancelling electret condenser microphone
• 3.5mm accessory jack for earpiece compatibility
• Volume control on speaker mic head
• Kevlar-reinforced polyurethane cable jacket
• 50 lb axial pull strength at speaker mic head
• RoHS compliant

Compatible Radios

Motorola: XTS 1500, XTS 2500, XTS 3000, XTS 3500, XTS 5000, HT1000, MTS 2000

EF Johnson: 5100 Series

Technical Specifications

Cabling
Jacket: 5.5mm Polyurethane, Kevlar Reinforced

Mechanical
Axial Pull at Speaker Mic Head: 50 lbs

Speaker
Transducer: Moving coil dynamic
Impedance: 8Ω ±15% @1KHz
Sensitivity: 120 dB ±10% @1KHz
Resonance Frequency: 400Hz ±20%
Frequency Response: F0–9KHz
Rated Input Power: 0.5W | Max: 1W

Microphone
Type: Noise Cancelling
Transducer: Electret condenser
Sensitivity: -34 ±2dB @1KHz
Impedance: Max 2.2kΩ @1KHz
Directivity: Omni-directional
Frequency: 100Hz–16,000Hz
Operating Voltage: 3V standard, 10V max
Current Consumption: Max 0.5mA
S/N Ratio: Min -34dB @1KHz

Environmental
RoHS Compliant

Replaces OEM Part Numbers

Motorola RMN5038A, RMN5066B, RMN5088

Waveband Part #: WX-8000-M5
