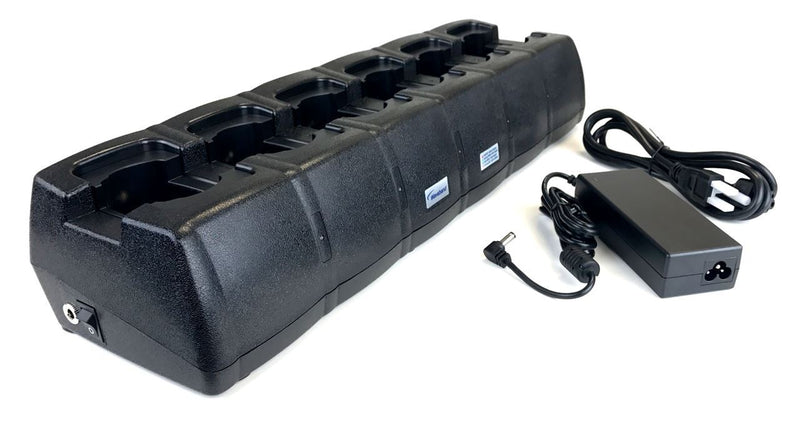

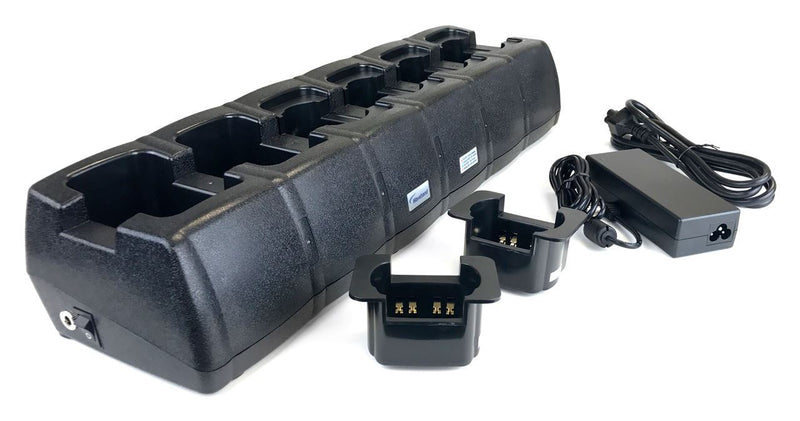

Six Station Tri-chemistry charger for Harris/Macom P7100 Radios. A tri-color charging LED indicates charging status.
- Includes power supplies and cable.
- Radio or battery alone can be charged
- Rapidly charges batteries in 2.5 to 5 hours.
- Charges battery alone or while attached to the radio.
- Unique Modular Design Light weight, versatile and portable design for desktop operation.
- Designed for the appropriate level of operational RF immunity.
Specifications
- Input Voltage: 115V 50/60Hz AC
- Charge Time: 4-5 hrs maximum capacity.
- Charge Current: 1000 mAh in Constant
- Current Charge phase.
- Charge Method: Constant Current - Constant Voltage with end-of-charge
- Operating Temp:0°C to 45°C (32°F to 113°F)
- Storage Temp: -20°C to 60°C (-4°F to 140°F)
- Length: 18 inches (457.2 mm)
- Height: 3.62 inches (92.07 mm)
- Weight: 4.1 lbs (1.85 kg)
Warranty
Each charger is guaranteed to be free from defects in materials and workmanship for 24 months from the date of shipment under normal use.
Compatible with the following radio models:
M A-Com 700Pi,
M A-Com Jaguar 700P,
M A-Com P5100,
M A-Com P5130,
M A-Com P5150,
M A-Com P5200,
M A-Com P7100,
M A-Com P7130.
MA-Com P7150,
M A-Com P7170,
M A-Com P7200M A-Com P7230
M A-Com P7250M A-Com P7270GE, Ericsson 700Pi
GE, Ericsson Jaguar 700PGE, Ericsson P5100GE, Ericsson P5130
GE, Ericsson P5150GE, Ericsson P5200GE, Ericsson P7100
GE, Ericsson P7130GE, Ericsson P7150GE, Ericsson P7170
GE, Ericsson P7200GE, Ericsson P7230GE, Ericsson P7250
GE, Ericsson P7270
Download user manual for Harris P7100 multi-unit charger
Download Battery Care Tips PDF
