Kit Requires a quick release adapter!

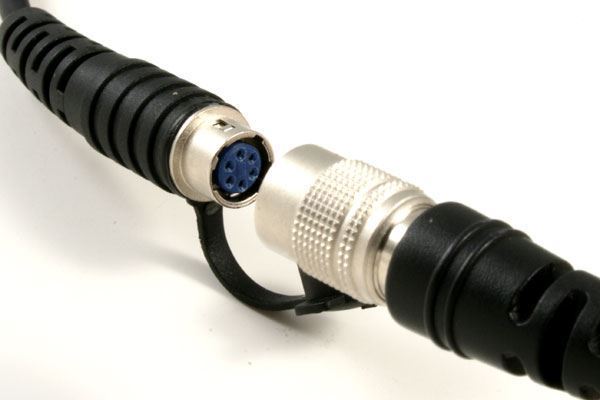

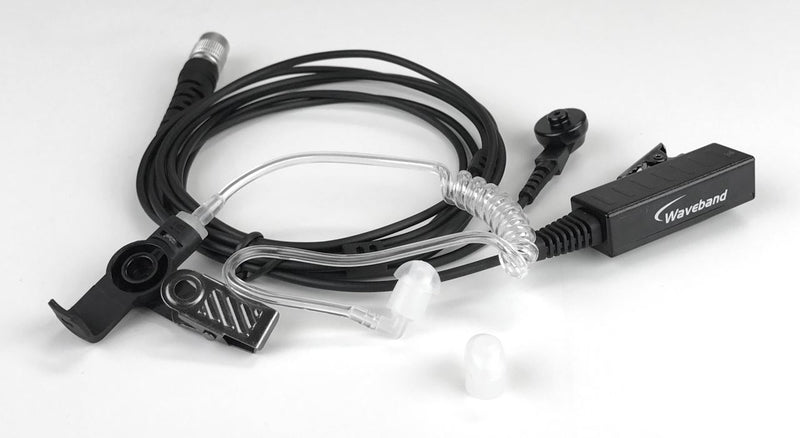

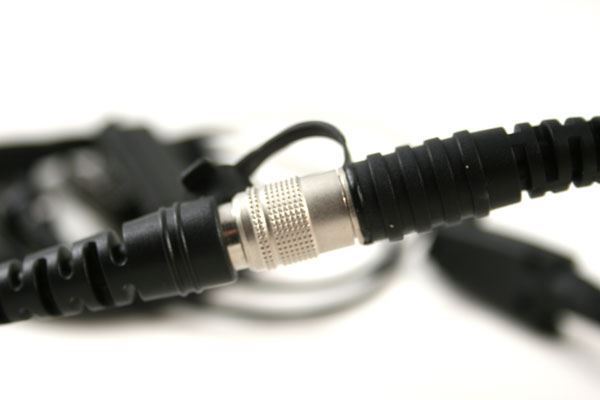

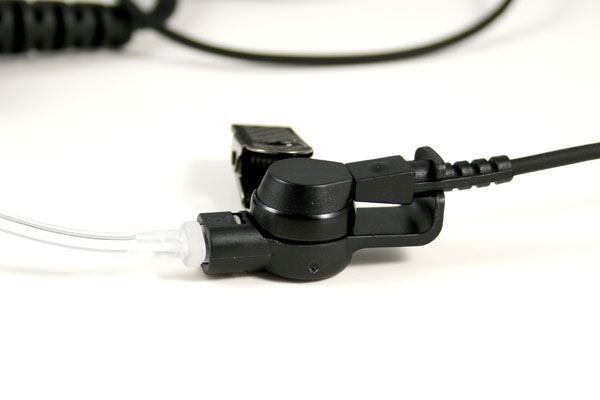

Motorola ZMN6032A comparable two wire surveillance kit for EF Johnson P5100 Handheld, and Motorola APX series radio includes a quick disconnect For discreet communications. Kit also includes kevlar reinforced cable, premium microphone and medical grade coiled acoustical tube.
This lapel microphone for Motorola xts5000 can also be used with the Motorola XTS 3000/5000, Motorola XTS1500/2500, Motorola HT1000/MTS2000, & EF Johnson 5100 Series Radios.
Also compatible with XTS3500, XTS3000, XTS2500, XTS1500, MT1500, PR1500, MTS2000, APX6000, APX6000XE, APX7000, APX7000XE.
Note: This radio earpiece with mic comes with an industry leading warranty against manufacturer defects.
Note: Our WV1-15023X-S is also referred to as a covert earpiece, 2 way radio earpiece, lapel mic for radio, or police radio earpiece.
Recommended for: Police, Fire, Military, Security, Law Enforcement
Below is a list of popular compatible quick release adapters for this two wire surveillance kit.
Quick Release Adapter Part#WV1-10335X for use with EF Johnson P5100 Handheld Radios
Quick Release Adapter Part#WV1-10337X for use with Harris M/A-Com P5300, P5400, P5500, XG-75 Portable Radios.
Quick Release Adapter Part#WV-05030 for use with Motorola APX600, APX6000XE, APX7000, APX7000XE, XPR7550, XPR6550, & MOTO TURBO Portables Radios.
Quick Release Adapter Part# K2-ADP-M7 for use with Kenwood NX-410, NX-411, NX-5200, TK-2180, TK3180, TK480, TK481, TK290, TK390, TK380, TK 280/
Cabling: Diameter 4.5mm, Earphone cable 3.0mm
Impedance: 250 +-50 Ohms
SPL: 97 +-3dB
Type: Piezoelectric Accelerometer Microphone
Impedance: 250 +- 50 Ohm
Sensitivity: 97 +- 3dB
Axial Pull at Microphone: 15lbs
Axial Pull at PTT: 35lbs
Axial Pull at UDC: 35lbs
Operating Temperature: -30 to +75 Celsius
Storage Temperature: -40 to +85 Celsius
12-Months for manufacturer’s defects.
Equivalent to: Motorola ZMN6032, Motorola ZMN6032A, Otto V1-10171.
Upgrade to New Comply™Foam Tips
A100 Situational Awareness and N-100 Total Isolation allow the ear to breathe, eliminating discomfort and ear fatigue, while providing unmatched noise isolation. Patented “Dual Layer” technology dramatically increases retention, providing a secure in-ear fit for active users. Utilizing high-tech viscoelastic memory foam, the Comply™Foam Tips are activated by body heat, becoming ultra-soft and remaining comfortable during extended use. Compatible with ALL barbed acoustic tube communication earpieces.
What happens if I can’t hear out of my earpiece?
Most likely, the surveillance kit is not defective. There may be moisture in the acoustic tube causing the transmission to not be heard or heard at a lower volume than before. We suggest cleaning out the removable acoustic tube and trying again. We have a great guide on how to clean your acoustic tube here.
What is the warranty period for surveillance kits?
Warranty for Waveband surveillance kits is 1 year from the date of purchase. This covers any manufacturing defects and workmanship. These defects can include the push to talk button being stuck and earpiece not transmitting or receiving. This warranty does not cover physical damage or abuse.
How long should I wait to replace my acoustic tube? Is it removable?
Due to hygiene factors, earwax, and moisture, acoustic tubes should be replaced every 3-6 months. The acoustic tubes are easily removable from the surveillance kit, allowing for easy replacement. We offer acoustic tube replacements, which you can find here.
Here’s what our other customers have to say about our 1 wire, 2 wire, and 3 wire surveillance kits.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Note: All OEM part references are for description purposes only.
