Public Safety Grade Mil Spec for ICOM F50V RadioWB#WX-8000-I5

Write a review
| Ask a question
In Stock
Save $34.50
SKU: WX-8000-I5
filler

Price:
$64.50 $99
Shipping calculated at checkout

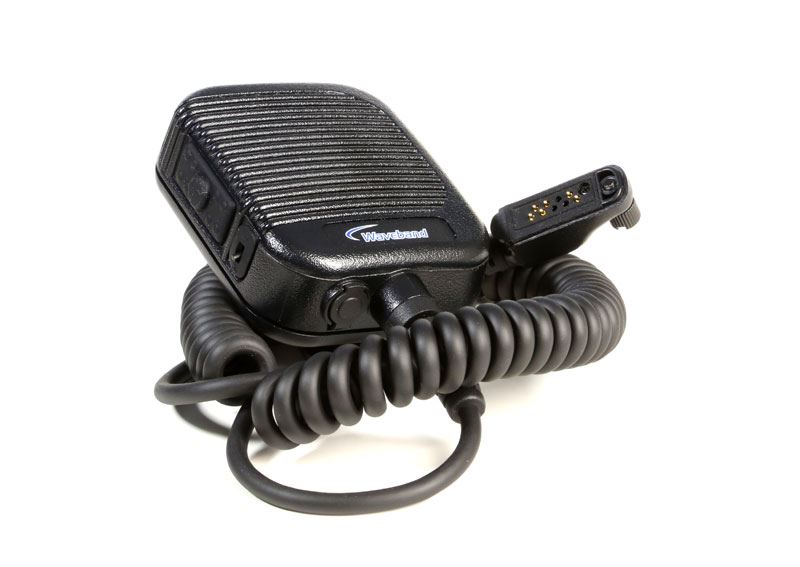

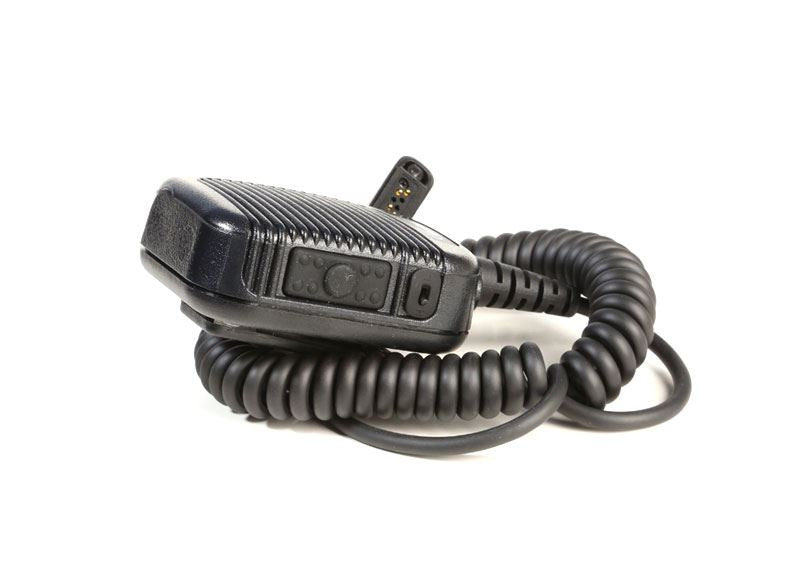

Public safety grade mil spec mic is fully waterproof with volume control and 3.5mm earphone jack.

Often used as a military speaker mic for ICOM radio, this durable speaker mic features:

. Emergency Button
. High/Low Volume
. Antenna Jack
. 2.5mm, 3.5mm or 3.5mm threaded audio jack

CABLING
. Jacket: 5.5 Polyurethane, Kevlar Reinforced

MECHANICAL
. Axial Pull at Speaker Mic Head: 50lbs

ENVIRONMENTAL
. RoHS Compliant Kevlar Reinforced Professional Grade - MILSPEC 810F

SPEAKER
Transducer Moving coil dynamic speaker
Impedance 8 ±15% @1KHz
Sensitivity 120 dB±10%@1KHz
Resonance freq (F0) 400HZ±20%
Frequency response F0~9KHz
Rated input power 0.5W
Maximum input power 1W

MICROPHONE
Type: Noise Cancelling (available without)
Transducer Electret condenser microphone
Sensitivity -34±2dB@1KHz 2.2K 3V 0dB=1v/pa
Impedance Max:2.2k @1KHz
Directivity Omni-directional
Frequency 100Hz—16000Hz
Max operation voltage 10V
Standard operation voltage 3V
Current consumption Max: 0.5mA
S/N ratio Min: -34dB @1KHz

CERTIFIED MIL-STD-810F
. Low Pressure Altitude (MIL-STD-810F, Proc. 500.4)
. High Temperature Storage, Cyclic (MIL-STD-810F, Method 501.4)
. High Temperature Operation, Cyclic (MIL-STD-810F, Method 501.4)
. Low Temperature - Storage (MIL-STD-810F, Method 502.4)
. Low Temperature - Operation (MIL-STD-810F, Method 502.4)
. Temperature Shock (MIL-STD-810F, Method 503.4)
. Solar Radiation (MIL-STD-810F, Method 505.4)
. Wind Driven Rain (MIL-STD-810F, Method 506.4)
. Humidity (MIL-STD-810F, Method 507.4)
. Salt Fog (MIL-STD-810F, Method 509.4)
. Dust Robustness (MIL-STD-810F, Method 510.4)
. Humidity (MIL-STD-810F, Method 507.4)
. Salt Fog (MIL-STD-810F, Method 509.4)
. Random Vibration (MIL-STD-810F, Method 514.5)
. Mechanical Shock Exposure (MIL-STD-810F, Method 516.5)
. Shock-Transit Drop (MIL-STD-810F, Method 516.5)
. Temporary Water Immersion IP67: 1m 31min

Cable Stretch Cycle Exposure:
50,000 stretches, 25,000 rock and twist cycles - 270 degrees rock and 90 degrees twist.
3:1 extension ratio 25C
. Cable Pull Strength at Head: 50lbs
. Electro Static Discharge (ESD)
Immunity Test: (IEC/EN 61000-4-2)

Waveband Part#WX-8000-I5
